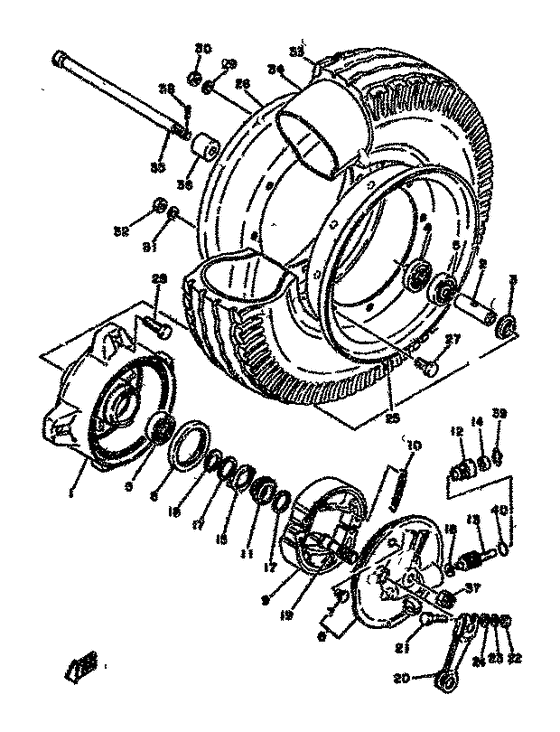

Front wheel Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
439-25111-01-00 Hub, Front |
439-25111-01-00 |
US $179.28 |
||
| replacement | |||||
|
01
|
01
439-25111-01-35 Hub, Front |
439-25111-01-35 |
US $179.28 |
||
|
02
|
02
90560-10104-00 Spacer |
90560-10104-00 |
from US $7.78 |
||
|
03
|
03
195-25115-00-00 New Genuine Part |
195-25115-00-00 |
from US $2.43 |
||
| replacement | |||||
|
03
|
03
2E9-25116-00-00 Flange, Spacer 2 |
2E9-25116-00-00 |
from US $3.47 |
||
|
04
|
04
93106-20001-00 Oil Seal |
93106-20001-00 |
US $6.24 |
||
|
05
|
05
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $10.10 |
||
|
06
|
06
393-25120-10-00
Brake Shoe Plate Assy
|
393-25120-10-00 |
— | ||
| replacement | |||||
|
06
|
06
393-25016-10-35
Brake Shoe Plt Assembly
|
393-25016-10-35 |
— | ||
|
07
|
07
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
08
|
08
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
09
|
09
296-25330-00-00 Brake Shoe Comp |
296-25330-00-00 |
US $23.89 |
||
| replacement | |||||
|
09
|
09
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
10
|
10
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
11
|
11
439-25135-00-00
Gear, Drive
|
439-25135-00-00 |
— | ||
|
12
|
12
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
13
|
13
439-25138-00-00 Gear, Meter |
439-25138-00-00 |
US $23.63 |
||
|
14
|
14
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
15
|
15
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
16
|
16
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
17
|
17
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
18
|
18
93410-20009-00 Circlip |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
19
|
19
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
20
|
20
109-25155-00-00 Lever, Camshaft 1 |
109-25155-00-00 |
US $49.32 |
||
|
21
|
21
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
22
|
22
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
22
|
22
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
23
|
23
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
25
|
25
1L4-25337-00-35 New Genuine Part |
1L4-25337-00-35 |
from US $72.31 |
||
| replacement | |||||
|
25
|
25
1L4-25337-00-00 Panel, Wheel 1 |
1L4-25337-00-00 |
from US $51.88 |
||
|
26
|
26
1L4-25347-00-35 Panel, Wheel 2 |
1L4-25347-00-35 |
from US $69.05 |
||
| replacement | |||||
|
26
|
26
1L4-25347-00-00 Panel, Wheel 2 |
1L4-25347-00-00 |
from US $51.88 |
||
|
27
|
27
90119-08023-00 Bolt, With Washer |
90119-08023-00 |
US $1.35 |
||
| replacements | |||||
|
27
|
27
97527-08516-00 Bolt, With Washer |
97527-08516-00 |
from US $1.35 |
||
|
27
|
27
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
28
|
28
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
28
|
28
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
29
|
29
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
30
|
30
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
30
|
30
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
30
|
30
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
31
|
31
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
32
|
32
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
32
|
32
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
32
|
32
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
33
|
33
94140-08237-00
Tire (4.00- 8)
|
94140-08237-00 |
— | ||
| replacement | |||||
|
33
|
33
94140-08747-00 Tire (5F5) |
94140-08747-00 |
US $181.13 |
||
|
34
|
34
94240-08044-00
Tube (4.00- 8)
|
94240-08044-00 |
— | ||
| replacement | |||||
|
34
|
34
94240-08136-00 Tube |
94240-08136-00 |
US $40.93 |
||
|
35
|
35
439-25181-01-00
Axle, Wheel
|
439-25181-01-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99022-16-00
Axle, Wheel Kit
|
999-99022-16-00 |
— | ||
|
36
|
36
90387-10081-00 Collar |
90387-10081-00 |
from US $9.63 |
||
|
37
|
37
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
37
|
37
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
38
|
38
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
38
|
38
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
39
|
39
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
40
|
40
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
40
|
40
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
