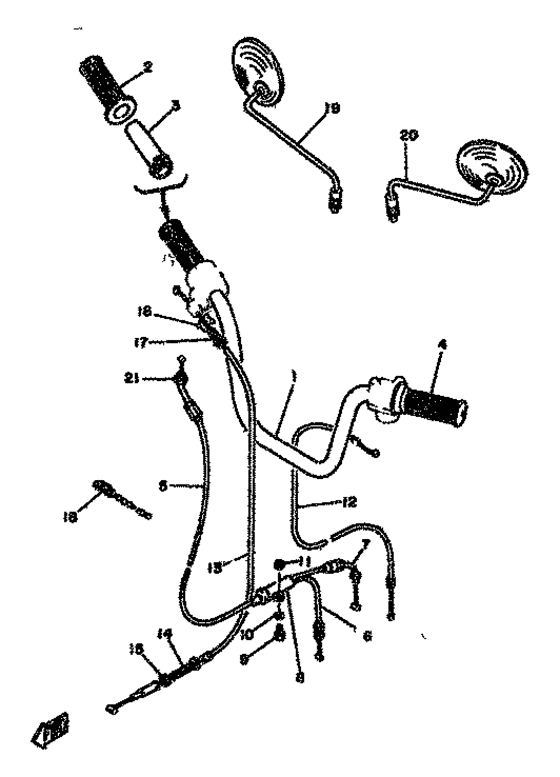

Handlebar. cable Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2T5-26111-00-00 Handlebar |
2T5-26111-00-00 |
US $165.79 |
||
|
02
|
02
395-26242-00-00 Grip (Right) |
395-26242-00-00 |
US $20.83 |
||
|
03
|
03
395-26243-00-00 Tube, Throttle Guide |
395-26243-00-00 |
US $23.94 |
||
|
04
|
04
395-26241-00-00 Grip |
395-26241-00-00 |
US $20.83 |
||
|
05
|
05
439-26311-00-00 Cable, Throttle 1 |
439-26311-00-00 |
from US $39.93 |
||
|
06
|
06
1V8-26312-00-00 Cable,throttle 2 |
1V8-26312-00-00 |
from US $14.45 |
||
| replacement | |||||
|
06
|
06
1V8-26312-01-00 Cable, Throttle 2 |
1V8-26312-01-00 |
from US $11.23 |
||
|
07
|
07
439-26321-00-00 Cable,pump |
439-26321-00-00 |
from US $18.76 |
||
| replacement | |||||
|
07
|
07
439-26321-01-00 Cable, Pump |
439-26321-01-00 |
from US $25.72 |
||
|
08
|
08
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $7.08 |
||
|
09
|
09
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
09
|
09
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
09
|
09
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
12
|
12
439-26331-00-00 Cable, Starter 1 |
439-26331-00-00 |
from US $17.85 |
||
|
13
|
13
439-26341-00-00 Cable, Brake |
439-26341-00-00 |
US $37.60 |
||
|
14
|
14
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
15
|
15
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
16
|
16
395-26323-00-00 Nut, Ajusting |
395-26323-00-00 |
from US $4.55 |
||
| replacements | |||||
|
16
|
16
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
16
|
16
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
17
|
17
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
17
|
17
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
17
|
17
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
18
|
18
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
19
|
19
2J6-26290-E0-00
Rear View Mirror Assy (Right)
|
2J6-26290-E0-00 |
— | ||
|
20
|
20
2J6-26290-A0-00
Rear View Mirror Assy (Right)
Ap |
2J6-26290-A0-00 |
— | ||
|
21
|
21
95301-10700-00 Nut |
95301-10700-00 |
US $7.37 |
||
| replacements | |||||
|
21
|
21
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
21
|
21
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
