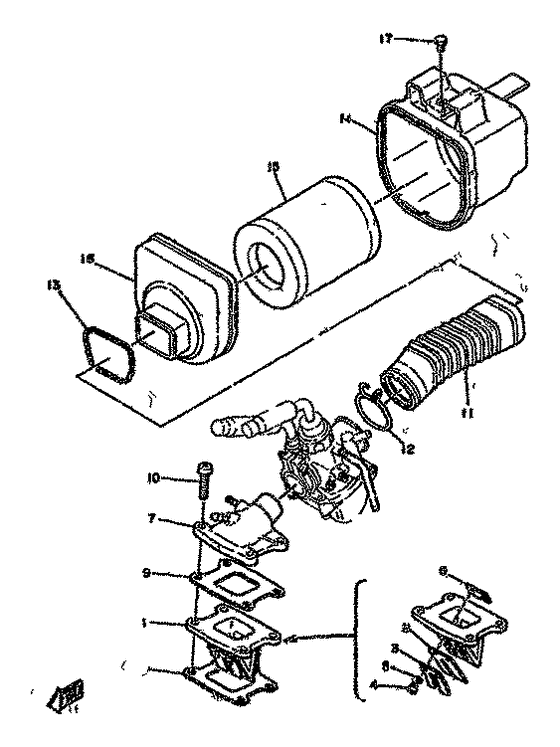

Intake Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2T5-13610-00-00
Reed Valve Assy
|
2T5-13610-00-00 |
— | ||
|
02
|
02
2T5-13613-00-00
Reed, Valve
|
2T5-13613-00-00 |
— | ||
|
03
|
03
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
03
|
03
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92901-03100-00 Washer, Spring |
92901-03100-00 |
from US $1.21 |
||
| replacement | |||||
|
05
|
05
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
06
|
06
2T5-13624-00-00
Plate,reed Valve
|
2T5-13624-00-00 |
— | ||
|
07
|
07
1L4-13565-00-00 Joint, Carburetor |
1L4-13565-00-00 |
US $65.11 |
||
|
08
|
08
1F5-13621-01-00 Gasket,valve Seat |
1F5-13621-01-00 |
from US $3.28 |
||
| replacement | |||||
|
08
|
08
1F5-13621-02-00 Gasket, Valve Seat |
1F5-13621-02-00 |
from US $3.28 |
||
|
09
|
09
1F5-13622-01-00 Gasket,valve Seat |
1F5-13622-01-00 |
from US $4.88 |
||
| replacement | |||||
|
09
|
09
1F5-13622-02-00 Gasket, Valve Seat |
1F5-13622-02-00 |
from US $2.20 |
||
|
10
|
10
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
11
|
11
1V8-14453-00-00 Joint, Air Clnr 1 |
1V8-14453-00-00 |
from US $49.19 |
||
|
12
|
12
90467-20023-00 Clip |
90467-20023-00 |
from US $1.70 |
||
|
13
|
13
90506-06075-00 Spring, Tension |
90506-06075-00 |
from US $4.68 |
||
|
14
|
14
1V8-14411-00-00
Case, Air Cleaner 1
|
1V8-14411-00-00 |
— | ||
| replacements | |||||
|
14
|
14
1V8-W1441-01-00
Case, Air Clnr 1
|
1V8-W1441-01-00 |
— | ||
|
14
|
14
1V8-14410-00-00
Air Cleaner Case Assy
|
1V8-14410-00-00 |
— | ||
|
15
|
15
1V8-14451-00-00 Element, Air Clnr |
1V8-14451-00-00 |
from US $11.04 |
||
| replacement | |||||
|
15
|
15
1V8-14451-01-00 Air Filter Cleaner Element |
1V8-14451-01-00 |
US $12.29 |
||
|
16
|
16
1V8-14412-00-00
Case, Air Clnr 1
|
1V8-14412-00-00 |
— | ||
| replacements | |||||
|
16
|
16
1V8-W1441-01-00
Case, Air Clnr 1
|
1V8-W1441-01-00 |
— | ||
|
16
|
16
1V8-W1441-00-00
Air Filter Case Assy
|
1V8-W1441-00-00 |
— | ||
|
17
|
17
97301-06010-00 Bolt |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
