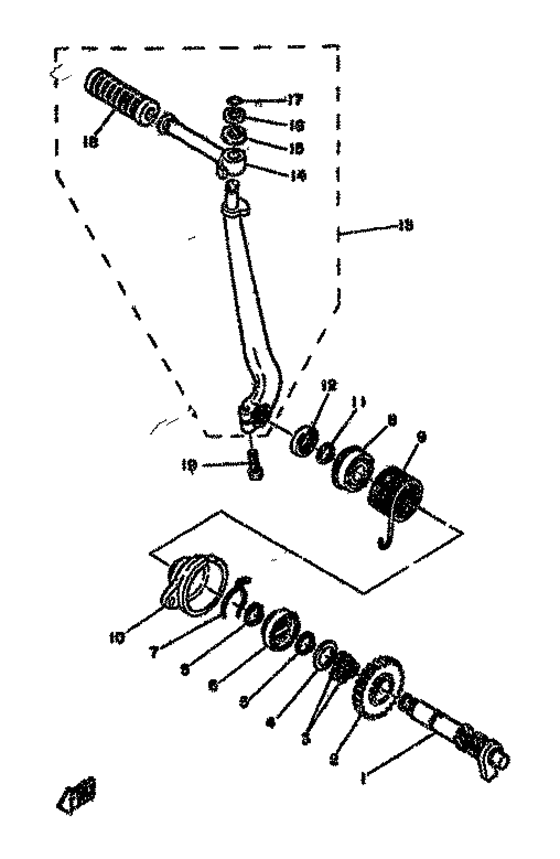

Kick starter Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
296-15660-00-00 Kick Axle Assembly |
296-15660-00-00 |
from US $142.30 |
||
|
02
|
02
384-15641-00-00 Gear, Kick |
384-15641-00-00 |
US $71.51 |
||
|
03
|
03
90206-19027-00 Washer, Wave |
90206-19027-00 |
from US $1.84 |
||
|
04
|
04
296-15644-00-00 Shim |
296-15644-00-00 |
from US $3.40 |
||
|
05
|
05
93410-19015-00 Circlip |
93410-19015-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
06
|
06
296-15671-00-00 Wheel, Ratchet |
296-15671-00-00 |
from US $27.91 |
||
|
07
|
07
90468-26046-00 Clip |
90468-26046-00 |
from US $3.54 |
||
|
08
|
08
1W7-15676-00-00 Cover, Spring |
1W7-15676-00-00 |
US $3.40 |
||
|
09
|
09
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
10
|
10
1W7-15664-00-00 Guide,spring |
1W7-15664-00-00 |
from US $15.12 |
||
| replacement | |||||
|
10
|
10
1W7-15664-01-00 Guide, Spring |
1W7-15664-01-00 |
from US $16.29 |
||
|
11
|
11
93410-15005-00 Circlip |
93410-15005-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
12
|
12
93109-15001-00 Oil Seal |
93109-15001-00 |
from US $4.43 |
||
|
13
|
13
439-15620-04-00 Kick Crank Assembly |
439-15620-04-00 |
from US $113.43 |
||
|
14
|
14
122-15612-02-00
Lever, Kick
|
122-15612-02-00 |
— | ||
| replacements | |||||
|
14
|
14
214-15612-09-00
Lever, Kick
|
214-15612-09-00 |
— | ||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90504-18005-00 Spring, Compression |
90504-18005-00 |
from US $3.05 |
||
| replacement | |||||
|
15
|
15
90504-18031-00 Spring, Compression |
90504-18031-00 |
from US $3.05 |
||
|
16
|
16
90209-10108-00
Washer,spec'l Shape
|
90209-10108-00 |
— | ||
| replacement | |||||
|
16
|
16
902-09102-10-00
Washer (5L1)
|
902-09102-10-00 |
— | ||
|
17
|
17
934-40100-28-00
Circlip, Outer
|
934-40100-28-00 |
— | ||
|
18
|
18
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $4.58 |
||
|
19
|
19
97311-06025-00 Bolt |
97311-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
