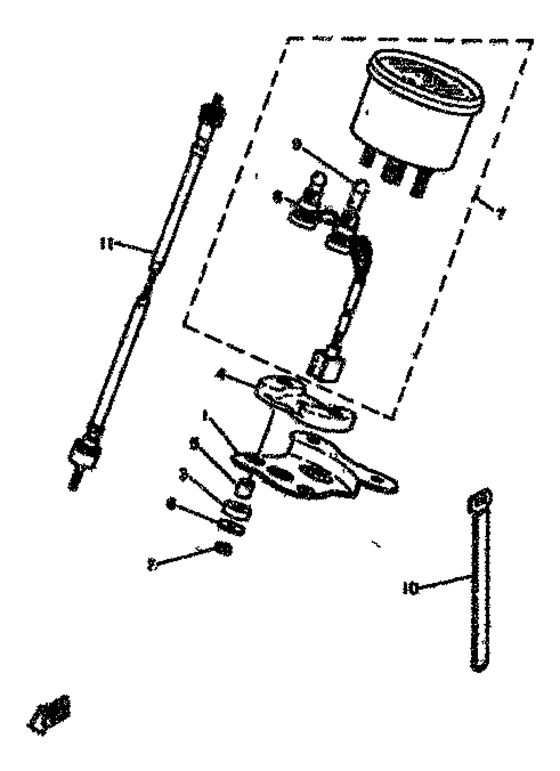

Meter Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
439-83519-00-33
Bracket, Meter
|
439-83519-00-33 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
02
|
02
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
03
|
03
355-83526-00-00 Damper 2 |
355-83526-00-00 |
from US $2.98 |
||
|
04
|
04
355-83513-00-00
Damper
|
355-83513-00-00 |
— | ||
|
05
|
05
355-83522-00-00 Collar |
355-83522-00-00 |
US $9.79 |
||
|
06
|
06
355-83524-00-00 Washer, Special |
355-83524-00-00 |
from US $2.13 |
||
| replacement | |||||
|
06
|
06
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
07
|
07
2R0-83510-30-00
Speedometer Assy
|
2R0-83510-30-00 |
— | ||
|
08
|
08
2R0-83520-50-00
Socket Cord Assy
|
2R0-83520-50-00 |
— | ||
|
09
|
09
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
09
|
09
122-83516-10-XX
Bulb
|
122-83516-10-XX |
— | ||
|
10
|
10
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
10
|
10
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
11
|
11
439-83550-01-00 Speedometer Cable Assy |
439-83550-01-00 |
from US $31.61 |
||
| replacement | |||||
|
11
|
11
3T5-83550-80-00 Speedometer Cable |
3T5-83550-80-00 |
from US $42.83 |
||
