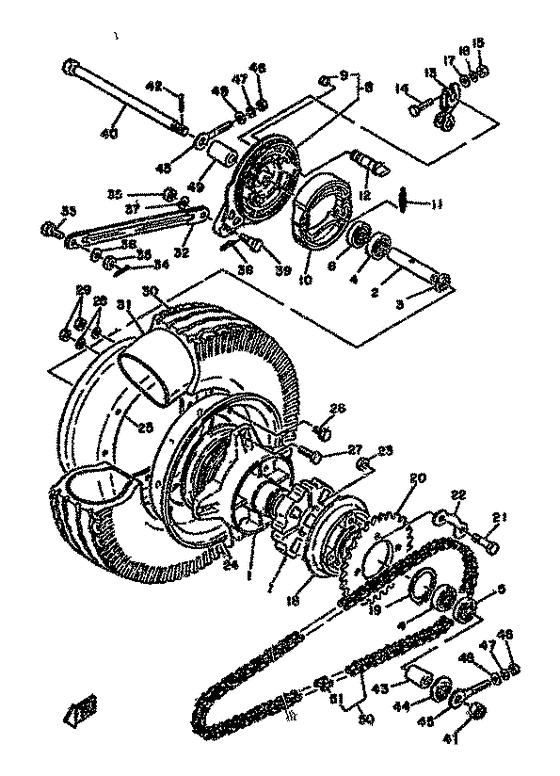

Rear wheel Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
561-25311-00-00 Hub, Rear |
561-25311-00-00 |
US $265.87 |
||
| replacement | |||||
|
01
|
01
561-25311-00-35 Hub, Rear |
561-25311-00-35 |
US $228.04 |
||
|
02
|
02
90560-12110-00 Spacer (439-25317-00) |
90560-12110-00 |
US $15.32 |
||
|
03
|
03
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
04
|
04
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
04
|
04
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
05
|
05
93106-20002-00 Oil Seal |
93106-20002-00 |
from US $8.50 |
||
| replacement | |||||
|
05
|
05
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
06
|
06
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
07
|
07
304-25364-00-00 Damper |
304-25364-00-00 |
US $10.63 |
||
| replacement | |||||
|
07
|
07
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $5.40 |
||
|
08
|
08
339-25026-10-35 Brake Shoe Plt Assembly (339-25 |
339-25026-10-35 |
US $94.64 |
||
|
09
|
09
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
10
|
10
296-25330-00-00 Brake Shoe Comp |
296-25330-00-00 |
US $23.89 |
||
| replacement | |||||
|
10
|
10
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
11
|
11
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
12
|
12
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
13
|
13
102-25355-01-00
Lever, Camshaft
|
102-25355-01-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
15
|
15
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
16
|
16
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
561-25366-00-00 Clutch, Hub |
561-25366-00-00 |
US $151.98 |
||
|
19
|
19
93410-47030-00 Circlip, S-Type |
93410-47030-00 |
US $10.20 |
||
|
20
|
20
122-25430-10-33 Sprocket, Driven (30T)Ur |
122-25430-10-33 |
US $58.44 |
||
| replacement | |||||
|
20
|
20
122-25430-10-00 Gear, Sprocket WheelUr |
122-25430-10-00 |
US $60.66 |
||
|
20
|
20
122-25431-10-33 Sprocket, Driven (31T)Ur |
122-25431-10-33 |
from US $24.82 |
||
| replacement | |||||
|
20
|
20
122-25431-19-00 SPROCKET, DRIVENUr |
122-25431-19-00 |
from US $29.45 |
||
|
20
|
20
122-25432-10-33 Sprocket, Driven (32T)Ur |
122-25432-10-33 |
US $51.26 |
||
| replacement | |||||
|
20
|
20
4BC-25432-50-00 Sprocket, Driven (32T)Ur |
4BC-25432-50-00 |
from US $24.73 |
||
|
21
|
21
90109-08057-00 Bolt |
90109-08057-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
90101-08672-00 Bolt |
90101-08672-00 |
from US $1.70 |
||
|
22
|
22
561-25412-00-00 Washer |
561-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
22
|
22
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
22
|
22
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
23
|
23
90170-08157-00 Nut |
90170-08157-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
90179-08639-00 Nut, Spec''l Shape (30) |
90179-08639-00 |
from US $1.81 |
||
|
24
|
24
1L4-25337-00-35 New Genuine Part |
1L4-25337-00-35 |
from US $72.31 |
||
| replacement | |||||
|
24
|
24
1L4-25337-00-00 Panel, Wheel 1 |
1L4-25337-00-00 |
from US $51.88 |
||
|
25
|
25
1L4-25347-00-35 Panel, Wheel 2 |
1L4-25347-00-35 |
from US $69.05 |
||
| replacement | |||||
|
25
|
25
1L4-25347-00-00 Panel, Wheel 2 |
1L4-25347-00-00 |
from US $51.88 |
||
|
26
|
26
90119-08023-00 Bolt, With Washer |
90119-08023-00 |
US $1.35 |
||
| replacements | |||||
|
26
|
26
97527-08516-00 Bolt, With Washer |
97527-08516-00 |
from US $1.35 |
||
|
26
|
26
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
27
|
27
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
27
|
27
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
28
|
28
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
29
|
29
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
29
|
29
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
29
|
29
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
30
|
30
94140-08138-00
Tire
|
94140-08138-00 |
— | ||
| replacement | |||||
|
30
|
30
94140-08747-00 Tire (5F5) |
94140-08747-00 |
US $181.13 |
||
|
31
|
31
94240-08044-00
Tube (4.00- 8)
|
94240-08044-00 |
— | ||
| replacement | |||||
|
31
|
31
94240-08136-00 Tube |
94240-08136-00 |
US $40.93 |
||
|
32
|
32
561-25371-00-00 Bar, Tension |
561-25371-00-00 |
US $35.26 |
||
|
33
|
33
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
33
|
33
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
34
|
34
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
34
|
34
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
34
|
34
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
35
|
35
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
35
|
35
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
36
|
36
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
37
|
37
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
37
|
37
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
38
|
38
90468-12007-00 Clip |
90468-12007-00 |
from US $1.84 |
||
| replacement | |||||
|
38
|
38
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
39
|
39
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
40
|
40
439-25381-01-00 Axle, Wheel |
439-25381-01-00 |
from US $49.48 |
||
|
41
|
41
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
41
|
41
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
42
|
42
91401-30022-00 Pin, Cotter |
91401-30022-00 |
US $1.42 |
||
| replacements | |||||
|
42
|
42
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
42
|
42
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
|
43
|
43
90387-12096-00 Collar |
90387-12096-00 |
from US $6.66 |
||
| replacement | |||||
|
43
|
43
90387-120F9-00 Collar |
90387-120F9-00 |
from US $5.13 |
||
|
44
|
44
561-25367-00-00
Cover, Hub Dust
|
561-25367-00-00 |
— | ||
|
45
|
45
102-25389-00-00 Puller, Chain |
102-25389-00-00 |
from US $10.58 |
||
| replacements | |||||
|
45
|
45
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
45
|
45
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $12.35 |
||
|
46
|
46
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
46
|
46
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
47
|
47
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
47
|
47
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
48
|
48
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
48
|
48
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
48
|
48
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
49
|
49
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
50
|
50
94580-13088-00 Chain, Drive (Did420M 88L) |
94580-13088-00 |
US $19.13 |
||
| replacement | |||||
|
50
|
50
9Y5-80520-87-00 Chain, Drive |
9Y5-80520-87-00 |
from US $19.13 |
||
|
51
|
51
94604-20001-00 Joint, Chain(Did 420M) |
94604-20001-00 |
from US $2.50 |
||
| replacements | |||||
|
51
|
51
94681-64001-00 Joint, Chain |
94681-64001-00 |
from US $2.83 |
||
|
51
|
51
94680-52001-00 Joint, Chain(Did 420M) |
94680-52001-00 |
from US $2.98 |
||
