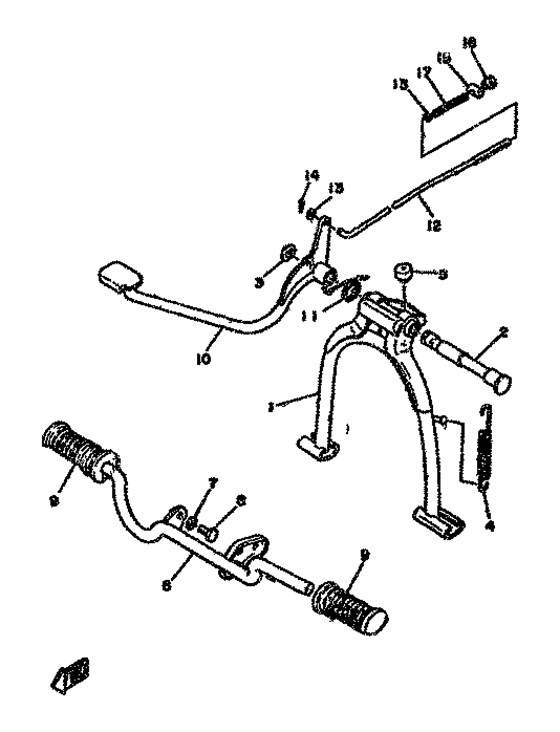

Stand & footrest Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
439-27111-03-33 Stand, Main |
439-27111-03-33 |
from US $99.68 |
||
| replacement | |||||
|
01
|
01
439-27111-03-00 Stand, Main (439-27111-03-33) |
439-27111-03-00 |
US $141.61 |
||
|
02
|
02
336-27112-00-00 Shaft, Main Stand |
336-27112-00-00 |
from US $6.06 |
||
|
03
|
03
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.84 |
||
|
04
|
04
90506-28100-00 Spring, Tension |
90506-28100-00 |
from US $8.22 |
||
| replacement | |||||
|
04
|
04
90506-26270-00 Spring, Tension (1L9) |
90506-26270-00 |
from US $8.22 |
||
|
05
|
05
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
|
06
|
06
551-27411-00-00 Footrest 1 |
551-27411-00-00 |
from US $90.85 |
||
| replacement | |||||
|
06
|
06
439-27411-00-00
Footrest 1
|
439-27411-00-00 |
— | ||
|
07
|
07
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
07
|
07
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
08
|
08
90101-08287-00 Bolt |
90101-08287-00 |
from US $2.16 |
||
|
09
|
09
441-27413-01-00 Cover, Footrest |
441-27413-01-00 |
from US $4.72 |
||
|
10
|
10
563-27211-02-91 Pedal, Brake |
563-27211-02-91 |
US $63.82 |
||
| replacement | |||||
|
10
|
10
563-27211-03-00 Pedal, Brake |
563-27211-03-00 |
US $63.82 |
||
|
11
|
11
90508-32056-00 Spring, Torsion |
90508-32056-00 |
from US $6.66 |
||
|
12
|
12
288-27231-00-00 Rod, Brake |
288-27231-00-00 |
from US $18.56 |
||
|
13
|
13
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
14
|
14
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
14
|
14
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
14
|
14
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
15
|
15
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
16
|
16
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
17
|
17
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
