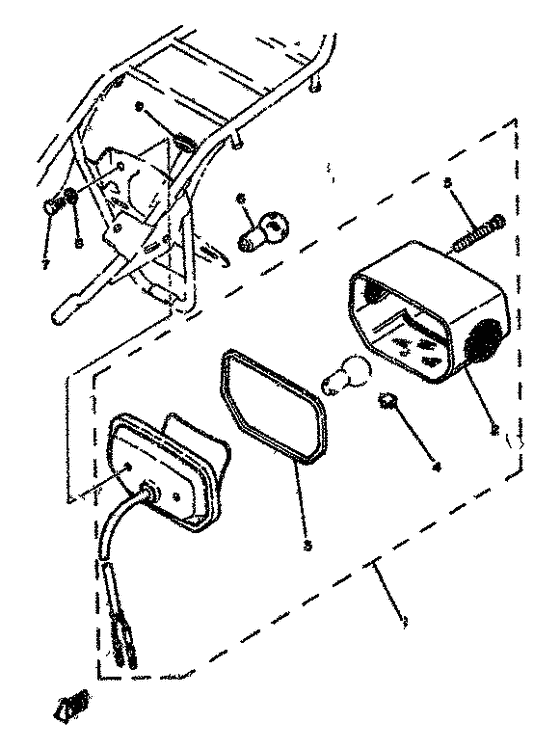

Taillight Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
543-84510-41-00
Taillight Unit Assy
|
543-84510-41-00 |
— | ||
|
02
|
02
543-84521-41-00
Lens, Taillight
|
543-84521-41-00 |
— | ||
|
03
|
03
296-84523-00-00 Gasket, Lens |
296-84523-00-00 |
US $9.49 |
||
| replacement | |||||
|
03
|
03
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $9.78 |
||
|
04
|
04
278-84718-40-00
Grommet
|
278-84718-40-00 |
— | ||
|
05
|
05
127-84524-30-00 Screw, Lens Fitting |
127-84524-30-00 |
US $3.40 |
||
| replacement | |||||
|
05
|
05
98507-04050-00 Screw, Pan Head |
98507-04050-00 |
from US $3.40 |
||
|
07
|
07
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
07
|
07
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
07
|
07
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
08
|
08
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
09
|
09
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.94 |
||
