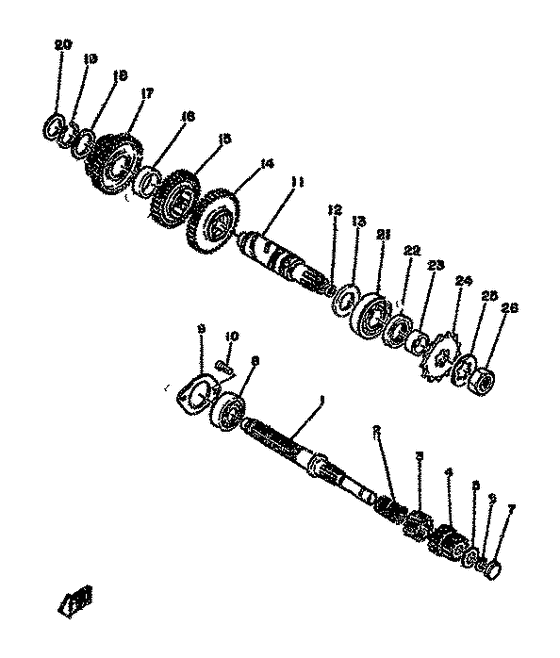

Transmission Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1L4-17411-00-00 Axle, Main |
1L4-17411-00-00 |
US $187.58 |
||
|
02
|
02
90501-12089-00 Spring, Compression (384-15572- |
90501-12089-00 |
US $2.77 |
||
|
03
|
03
384-15631-00-00
Gear, Kick Pinion
|
384-15631-00-00 |
— | ||
|
04
|
04
386-17121-00-00 Gear, 2Nd Pinion |
386-17121-00-00 |
US $173.43 |
||
|
05
|
05
90201-12179-00 Washer, Plate |
90201-12179-00 |
US $3.02 |
||
|
06
|
06
93410-12003-00 Circlip |
93410-12003-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
07
|
07
90338-18064-00 Plug |
90338-18064-00 |
from US $3.60 |
||
|
08
|
08
93306-20309-00 Bearing |
93306-20309-00 |
from US $15.30 |
||
| replacement | |||||
|
08
|
08
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
09
|
09
296-17471-00-00 Plate, Cover |
296-17471-00-00 |
from US $2.69 |
||
|
10
|
10
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
11
|
11
439-17421-00-00 Axle, Drive |
439-17421-00-00 |
from US $172.11 |
||
|
12
|
12
93104-06021-00 Oil Seal |
93104-06021-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
931-04061-08-00 Oil Seal (1Ry) |
931-04061-08-00 |
from US $2.83 |
||
|
13
|
13
90560-20040-00 Spacer |
90560-20040-00 |
US $6.80 |
||
|
14
|
14
384-17211-00-00 Gear, 1St Wheel (39T) |
384-17211-00-00 |
from US $77.53 |
||
|
15
|
15
386-17221-00-00
Gear, 2Nd Wheel
|
386-17221-00-00 |
— | ||
|
16
|
16
90387-25190-00
Collar (384-17442-00)
|
90387-25190-00 |
— | ||
|
17
|
17
384-15651-00-00 Gear, Kick Idle |
384-15651-00-00 |
from US $91.22 |
||
|
18
|
18
626-45577-00-01 Shim (T:0.10Mm)Ur |
626-45577-00-01 |
US $4.53 |
||
| replacement | |||||
|
18
|
18
626-45577-00-00 Shim (T:0.10Mm)Ur |
626-45577-00-00 |
from US $4.53 |
||
|
18
|
18
626-45577-00-03 Shim (T:0.30Mm)Ur |
626-45577-00-03 |
US $4.53 |
||
| replacement | |||||
|
18
|
18
626-45577-20-00 Shim (T:0.30Mm)Ur |
626-45577-20-00 |
from US $2.70 |
||
|
18
|
18
626-45577-00-05 Shim (T:0.50Mm)Ur |
626-45577-00-05 |
US $4.53 |
||
| replacement | |||||
|
18
|
18
626-45577-40-00 Shim (T:0.50Mm)Ur |
626-45577-40-00 |
from US $4.53 |
||
|
19
|
19
93440-25019-00 Circlip |
93440-25019-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
20
|
20
90201-21381-00
Washer, Plate
|
90201-21381-00 |
— | ||
|
21
|
21
93306-20401-00 Bearing |
93306-20401-00 |
from US $15.53 |
||
| replacements | |||||
|
21
|
21
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.53 |
||
|
21
|
21
93306-204Y7-00
Bearing
|
93306-204Y7-00 |
— | ||
|
22
|
22
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.51 |
||
|
23
|
23
90387-20491-00 Collar |
90387-20491-00 |
from US $5.81 |
||
|
24
|
24
517-17461-31-00 Sprocket, Drive (13T)Ur |
517-17461-31-00 |
from US $15.88 |
||
| replacement | |||||
|
24
|
24
938-12130-22-00 Sprocket, Drive 13TUr |
938-12130-22-00 |
from US $17.28 |
||
|
24
|
24
517-17461-41-00 Sprocket, Drive (14T)Ur |
517-17461-41-00 |
from US $17.24 |
||
| replacement | |||||
|
24
|
24
93812-14035-00 Sprocket, Drive (14T)Ur |
93812-14035-00 |
from US $24.51 |
||
|
24
|
24
517-17461-52-00 Sprocket, DriveSprocket, drive (15t) Ur |
517-17461-52-00 |
from US $17.66 |
||
| replacement | |||||
|
24
|
24
93812-15063-00 Sprocket, Drive 15T (5171746152Ur |
93812-15063-00 |
from US $21.50 |
||
|
25
|
25
90215-16020-00 Washer, Lock |
90215-16020-00 |
from US $3.68 |
||
| replacement | |||||
|
25
|
25
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
26
|
26
90179-16018-00 Nut |
90179-16018-00 |
from US $3.26 |
||
| replacement | |||||
|
26
|
26
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $3.04 |
||
