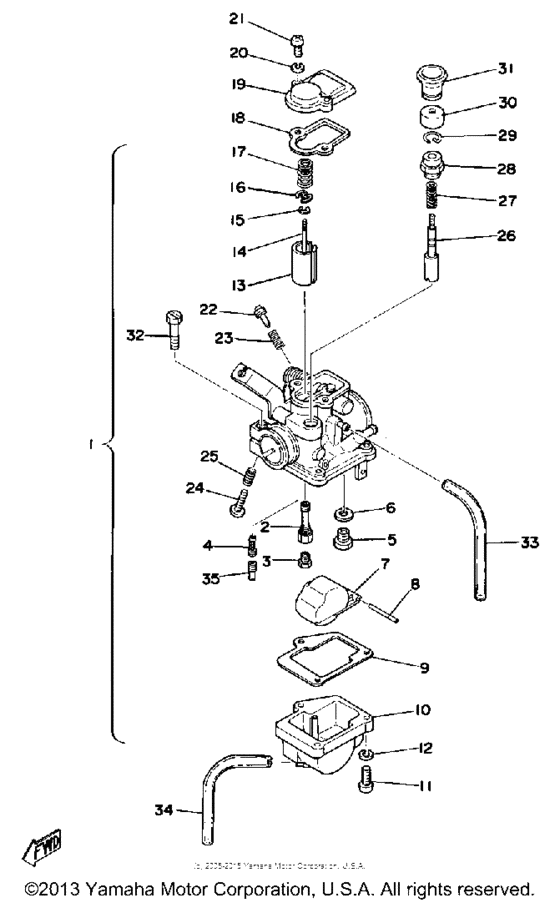

Carburetor Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M6-14101-00-00
Carburetor Assembly 1
|
1M6-14101-00-00 |
— | ||
|
2
|
2
127-14141-16-00
Nozzle, Main
|
127-14141-16-00 |
— | ||
|
3
|
3
127-14143-20-00 Jet, Main #100#100 STDU.R |
127-14143-20-00 |
from US $9.99 |
||
|
3
|
3
127-14143-21-00
Jet, Main #105
#105 U.R |
127-14143-21-00 |
— | ||
|
3
|
3
127-14143-19-00 Jet, Main #95#95 U.R |
127-14143-19-00 |
US $4.79 |
||
|
4
|
4
193-14142-20-00 Jet, Pilot #20#20 |
193-14142-20-00 |
from US $10.48 |
||
|
5
|
5
2E9-14190-12-00 Needle Valve Assembly (127-14127-14 |
2E9-14190-12-00 |
from US $61.88 |
||
|
6
|
6
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
7
|
7
439-14185-00-00
Float
|
439-14185-00-00 |
— | ||
|
8
|
8
439-14186-00-00 Pin, Float |
439-14186-00-00 |
from US $9.59 |
||
|
9
|
9
439-14184-00-00 Gasket, Float Chmbr |
439-14184-00-00 |
from US $23.94 |
||
|
10
|
10
439-14181-00-00
Body, Float Chmbr 1
|
439-14181-00-00 |
— | ||
|
11
|
11
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
11
|
11
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
1F5-14112-30-00
Valve, Throttle 1
|
1F5-14112-30-00 |
— | ||
|
14
|
14
127-14116-09-00 Needle |
127-14116-09-00 |
from US $16.45 |
||
|
15
|
15
127-14137-00-00 Clip |
127-14137-00-00 |
from US $7.70 |
||
|
16
|
16
439-14136-01-00
Seat, Spring
|
439-14136-01-00 |
— | ||
|
17
|
17
439-14131-00-00
Spring, Thrtl Valve
|
439-14131-00-00 |
— | ||
|
18
|
18
439-14198-01-00 Gasket |
439-14198-01-00 |
from US $10.91 |
||
|
19
|
19
439-14158-00-00
Top, Mixing Chamber
|
439-14158-00-00 |
— | ||
|
20
|
20
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
21
|
21
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
22
|
22
127-W1412-00-00 Screw, Air Adjusting.set |
127-W1412-00-00 |
from US $17.33 |
||
|
23
|
23
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
24
|
24
1M3-14121-00-00
Screw, Thrtl Stop
|
1M3-14121-00-00 |
— | ||
|
25
|
25
620-14133-00-00 Spring, Throttle Stop (#37.5) |
620-14133-00-00 |
US $2.23 |
||
|
26
|
26
1M3-14171-00-00
Plunger, Starter
|
1M3-14171-00-00 |
— | ||
|
27
|
27
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
28
|
28
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
29
|
29
353-14138-00-00 Clip, Plunger |
353-14138-00-00 |
from US $7.76 |
||
|
30
|
30
3A3-14173-00-00
Cover, Plunger Cap
|
3A3-14173-00-00 |
— | ||
|
31
|
31
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
32
|
32
97301-05025-00
Bolt, Hexagon (97201-05025)
97201-05025 |
97301-05025-00 |
— | ||
| replacement | |||||
|
32
|
32
97017-05025-00 Bolt97201-05025 |
97017-05025-00 |
US $1.49 |
||
|
33
|
33
440-14197-00-00
Pipe, Airvent
|
440-14197-00-00 |
— | ||
|
34
|
34
353-14196-00-00
Pipe, Overflow
|
353-14196-00-00 |
— | ||
| replacement | |||||
|
34
|
34
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
|
35
|
35
1M3-14148-00-00
Pipe
|
1M3-14148-00-00 |
— | ||
