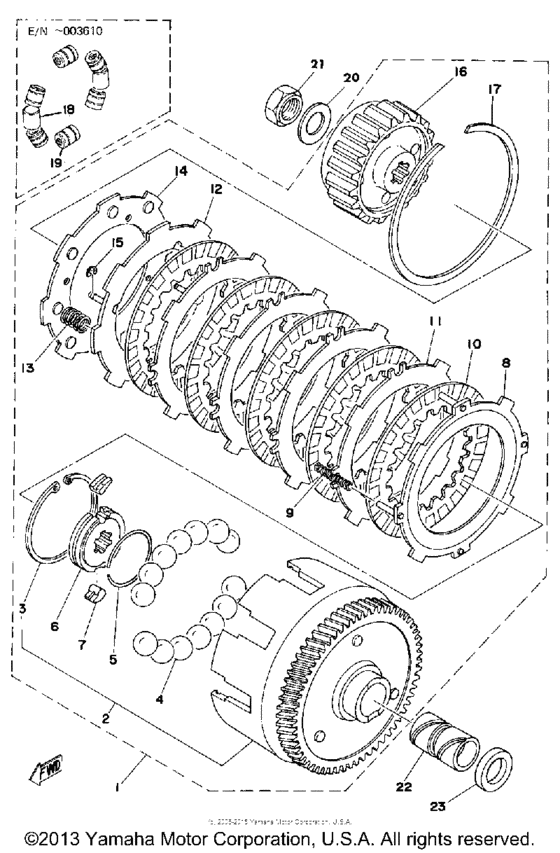

Clutch Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L7-16301-00-00
Clutch Assembly
|
1L7-16301-00-00 |
— | ||
|
2
|
2
527-16150-01-30
Pri Drvn Gear
M7-020 |
527-16150-01-30 |
— | ||
|
2
|
2
527-16150-10-30
Pri Drvn Gear
|
527-16150-10-30 |
— | ||
|
2
|
2
527-16150-10-40
Pri Drvn Gear
|
527-16150-10-40 |
— | ||
|
2
|
2
527-16150-10-20
Pri Drvn Gear
|
527-16150-10-20 |
— | ||
|
3
|
3
934-20610-41-00
Circlip, R-Type
|
934-20610-41-00 |
— | ||
|
4
|
4
93505-08030-00 BallM7-020 |
93505-08030-00 |
from US $1.84 |
||
|
5
|
5
2T4-15637-00-00 Spring, Pawl |
2T4-15637-00-00 |
from US $6.09 |
||
| replacement | |||||
|
5
|
5
2T4-15637-01-00 Spring, Pawl |
2T4-15637-01-00 |
from US $3.47 |
||
|
6
|
6
517-16180-00-00 One Way Boss Comp |
517-16180-00-00 |
from US $26.03 |
||
|
7
|
7
384-15635-00-00 Pawl, Kick |
384-15635-00-00 |
from US $7.52 |
||
|
8
|
8
527-16520-10-00 Plate, Thrust Weight |
527-16520-10-00 |
from US $28.76 |
||
|
8
|
8
517-16523-00-00
Plate, Wt Thrust
WT THRUST M7-020 |
517-16523-00-00 |
— | ||
|
9
|
9
90501-10449-00
Spring, Compression
|
90501-10449-00 |
— | ||
|
9
|
9
905-01084-37-00
Spring, Compression
|
905-01084-37-00 |
— | ||
|
10
|
10
3E5-16521-00-00 Plate, Friction |
3E5-16521-00-00 |
from US $17.62 |
||
|
11
|
11
517-16524-10-00 Plate, Clutch 1 (1.2T)1.2T U.R |
517-16524-10-00 |
from US $11.46 |
||
|
11
|
11
517-16524-20-00 Plate, Clutch 1 (1.4T)1.4T U.R |
517-16524-20-00 |
from US $17.28 |
||
|
11
|
11
517-16524-30-00 Plate, Clutch 1 (1.6T)1.6T U.R |
517-16524-30-00 |
from US $9.44 |
||
|
12
|
12
517-16551-91-00
Plate, Pressure 1
|
517-16551-91-00 |
— | ||
|
13
|
13
90501-12369-00 Spring, Compression |
90501-12369-00 |
from US $2.83 |
||
|
14
|
14
517-16561-01-00 Plate, Pressure 2 |
517-16561-01-00 |
from US $12.47 |
||
|
15
|
15
93430-03013-00 Circlip |
93430-03013-00 |
US $1.56 |
||
| replacements | |||||
|
15
|
15
99080-03600-00 Circlip |
99080-03600-00 |
from US $1.50 |
||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
527-16571-00-00 Boss, Clutch |
527-16571-00-00 |
from US $31 |
||
| replacement | |||||
|
16
|
16
527-16571-01-00 Boss, Clutch |
527-16571-01-00 |
from US $34.72 |
||
|
17
|
17
93451-08094-00 Circlip |
93451-08094-00 |
from US $4.82 |
||
|
18
|
18
517-16540-00-00
Roller Weight Assembly
M7-020 |
517-16540-00-00 |
— | ||
|
19
|
19
120-16545-00-00
Roller, Weight Straight
M7-020 |
120-16545-00-00 |
— | ||
|
20
|
20
90208-16019-00 Washer, Conical Spring |
90208-16019-00 |
from US $1.70 |
||
|
21
|
21
90179-16190-00 Nut |
90179-16190-00 |
from US $7.08 |
||
|
22
|
22
90560-17146-00 Spacer |
90560-17146-00 |
from US $20.26 |
||
|
23
|
23
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
