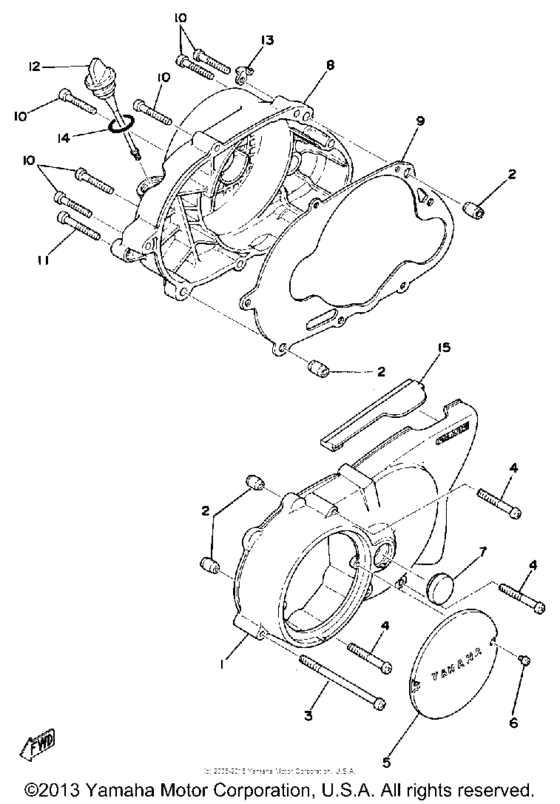

Crankcase cover Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L6-15411-00-00
Cover, Crankcase L
|
1L6-15411-00-00 |
— | ||
|
2
|
2
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
2
|
2
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
2
|
2
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
3
|
3
98501-06100-00 Screw Pan Head |
98501-06100-00 |
from US $1.98 |
||
| replacement | |||||
|
3
|
3
98507-06100-00 Screw, Pan Head |
98507-06100-00 |
from US $1.98 |
||
|
4
|
4
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
5
|
5
164-15415-00-00 Cover, 1 |
164-15415-00-00 |
from US $23.09 |
||
|
6
|
6
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
6
|
6
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
6
|
6
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
7
|
7
257-15417-01-00 Cover, Cap |
257-15417-01-00 |
from US $5.95 |
||
|
8
|
8
517-15421-01-00 Cover, Crankcase R |
517-15421-01-00 |
US $156.12 |
||
|
9
|
9
4AW-15451-00-00 Gasket, Crankcase Cover 1 |
4AW-15451-00-00 |
from US $17.07 |
||
|
10
|
10
92501-06035-00 Screw, Pan Head |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
10
|
10
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
11
|
11
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
12
|
12
4L0-15362-00-00 Plug, Oil Level |
4L0-15362-00-00 |
from US $14.26 |
||
|
13
|
13
1L7-15378-00-00
Holder
|
1L7-15378-00-00 |
— | ||
|
14
|
14
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
|
15
|
15
1M3-15492-01-00
Cover
|
1M3-15492-01-00 |
— | ||
