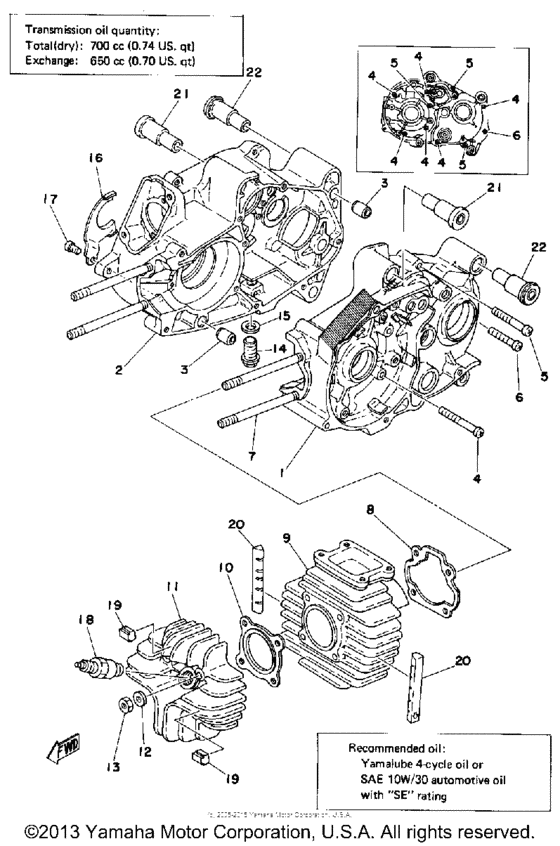

Crankcase & cylinder Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L7-15111-01-00
Crankcase 1
|
1L7-15111-01-00 |
— | ||
|
2
|
2
1L7-15121-02-00
Crankcase 2
|
1L7-15121-02-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
4
|
4
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
5
|
5
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
6
|
6
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
6
|
6
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
7
|
7
90116-06100-00 Bolt, Stud |
90116-06100-00 |
from US $4.82 |
||
|
8
|
8
440-11351-01-00 Gasket, Cylinder |
440-11351-01-00 |
from US $6.94 |
||
|
9
|
9
1F5-11311-00-00
Cylinder 1
|
1F5-11311-00-00 |
— | ||
|
10
|
10
1F5-11181-00-00
Gasket, Cylinder Head 1 (80E)
80E |
1F5-11181-00-00 |
— | ||
| replacement | |||||
|
10
|
10
2F4-11181-00-00 Gasket, Cylinder Head 1 (80E)80E |
2F4-11181-00-00 |
from US $16.15 |
||
|
11
|
11
527-11111-00-94
Head, Cylinder 1
|
527-11111-00-94 |
— | ||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
15
|
15
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
16
|
16
296-15128-00-00 Holder |
296-15128-00-00 |
US $6.91 |
||
|
17
|
17
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
18
|
18
NGK-B6HS0-00-00
B6Hs Ngk 4Pk
4PK |
NGK-B6HS0-00-00 |
— | ||
| replacements | |||||
|
18
|
18
B6H-S0000-00-00 element4PK |
B6H-S0000-00-00 |
US $4.23 |
||
|
18
|
18
BR6-HS000-00-00 Plug, Spark (Ngk Br6Hs)4PK |
BR6-HS000-00-00 |
US $27.36 |
||
|
19
|
19
434-11161-00-00 Absorber 1 |
434-11161-00-00 |
from US $6.23 |
||
|
20
|
20
1F5-11162-00-00
Absorber 2
|
1F5-11162-00-00 |
— | ||
|
21
|
21
296-15316-00-00 Damper 1 |
296-15316-00-00 |
from US $9.78 |
||
| replacements | |||||
|
21
|
21
5T9-15316-01-00 Damper 1 |
5T9-15316-01-00 |
from US $9.78 |
||
|
21
|
21
5T9-15316-02-00 DAMPER 1 |
5T9-15316-02-00 |
from US $6.40 |
||
|
22
|
22
296-15316-00-00 Damper 1 |
296-15316-00-00 |
from US $9.78 |
||
| replacements | |||||
|
22
|
22
5T9-15316-01-00 Damper 1 |
5T9-15316-01-00 |
from US $9.78 |
||
|
22
|
22
5T9-15316-02-00 DAMPER 1 |
5T9-15316-02-00 |
from US $6.40 |
||
