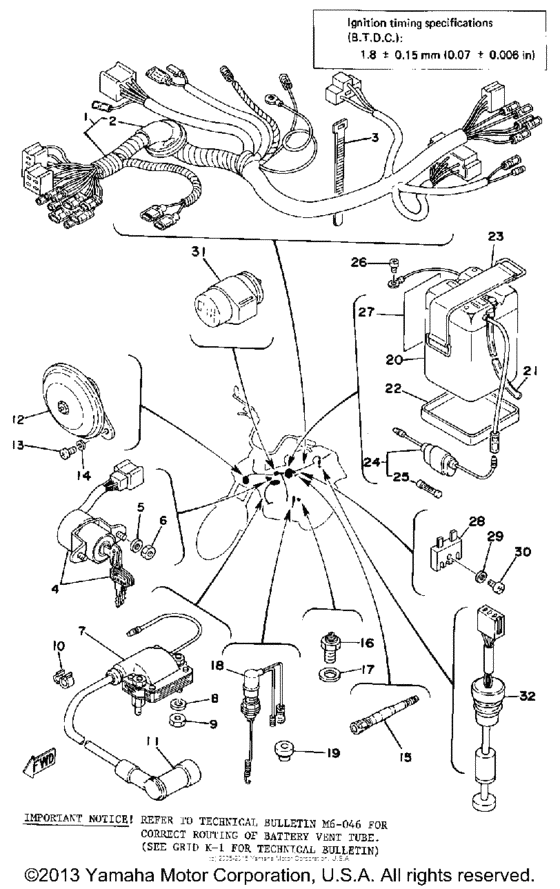

Electrical Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T8-82590-60-00
Wire Harness Assembly
|
1T8-82590-60-00 |
— | ||
|
2
|
2
1M3-82595-00-00
Grommet
|
1M3-82595-00-00 |
— | ||
|
3
|
3
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
4
|
4
1T8-82508-60-00
Main Switch Assembly
|
1T8-82508-60-00 |
— | ||
|
5
|
5
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
7
|
7
1M3-82310-30-00
Ignition Coil Assembly
|
1M3-82310-30-00 |
— | ||
|
7
|
7
1M3-82310-40-00
Ignition Coil Assembly
|
1M3-82310-40-00 |
— | ||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
10
|
10
90468-15020-00 Clip |
90468-15020-00 |
from US $1.21 |
||
|
11
|
11
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
12
|
12
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
13
|
13
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
517-81980-A0-00 Diode AssyDiode assy |
517-81980-A0-00 |
US $28.78 |
||
|
16
|
16
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
16
|
16
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
16
|
16
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $24.58 |
||
|
17
|
17
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
17
|
17
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
18
|
18
1M3-82530-01-00 Stop Switch Assembly |
1M3-82530-01-00 |
US $34.08 |
||
| replacement | |||||
|
18
|
18
22F-82530-02-00 Stop Switch Assembly |
22F-82530-02-00 |
US $49.77 |
||
|
19
|
19
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.94 |
||
|
20
|
20
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
20
|
20
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
21
|
21
90445-08047-00 Hose (L1500) |
90445-08047-00 |
from US $10.91 |
||
| replacement | |||||
|
21
|
21
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
22
|
22
583-24182-00-00 Damper, Locating 2 |
583-24182-00-00 |
from US $5.95 |
||
|
23
|
23
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
23
|
23
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
24
|
24
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
24
|
24
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
25
|
25
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
25
|
25
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
26
|
26
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
27
|
27
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
27
|
27
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
28
|
28
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
28
|
28
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
29
|
29
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
29
|
29
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
29
|
29
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
30
|
30
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
31
|
31
542-83350-60-00
Flasher Relay Assembly
|
542-83350-60-00 |
— | ||
|
32
|
32
1E7-85720-02-00 Oil Lvl Gauge Assembly |
1E7-85720-02-00 |
US $69.56 |
||
