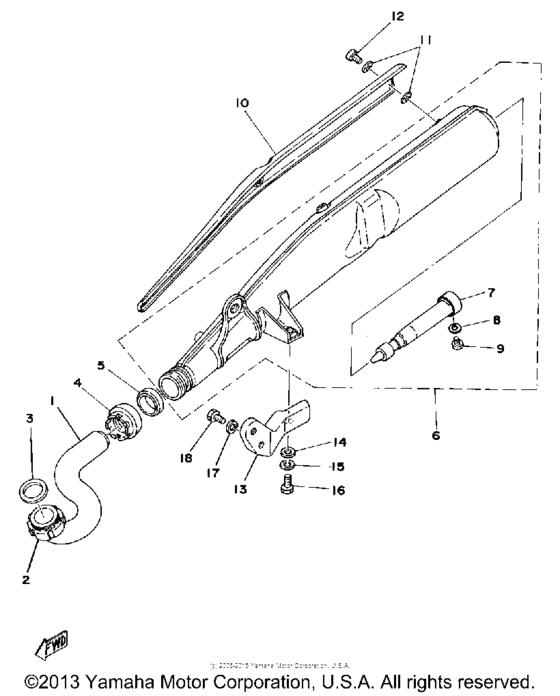

Exhaust Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M4-14611-00-00
Pipe, Exhaust L
|
1M4-14611-00-00 |
— | ||
|
2
|
2
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
3
|
3
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
3
|
3
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
4
|
4
395-14713-00-00 Nut, Muffler Joint |
395-14713-00-00 |
from US $25.11 |
||
|
5
|
5
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
6
|
6
1T8-14710-01-00
Muffler Assembly L
|
1T8-14710-01-00 |
— | ||
|
7
|
7
1T8-14752-00-00
Pipe, Outlet
|
1T8-14752-00-00 |
— | ||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
10
|
10
1M3-14718-01-93
Protector, Muff 1
|
1M3-14718-01-93 |
— | ||
|
11
|
11
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
12
|
12
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
13
|
13
1M3-21445-01-00
Stay, Muffler 1
|
1M3-21445-01-00 |
— | ||
|
14
|
14
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
16
|
16
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
18
|
18
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
