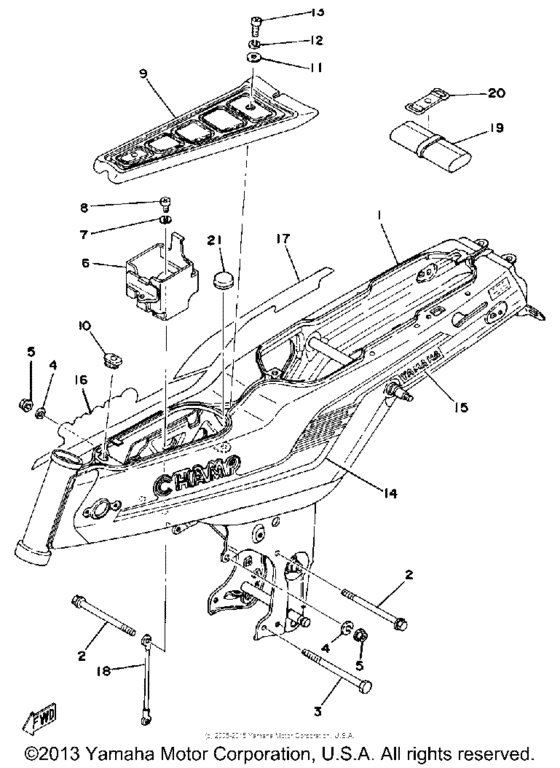

Frame Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T8-21110-01-26
Frame
|
1T8-21110-01-26 |
— | ||
|
2
|
2
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
3
|
3
90101-08538-00 Bolt |
90101-08538-00 |
from US $7.37 |
||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
5
|
5
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
5
|
5
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
6
|
6
1M3-21393-02-00
Bracket, Batt Box
|
1M3-21393-02-00 |
— | ||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
9
|
9
1M3-28385-00-00
Cover, Lower
|
1M3-28385-00-00 |
— | ||
|
10
|
10
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
13
|
13
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
14
|
14
1T8-24254-00-00
Graphic, Fuel Tnk 7
|
1T8-24254-00-00 |
— | ||
|
15
|
15
1M3-24255-00-00
Graphic, Fuel Tnk 8
|
1M3-24255-00-00 |
— | ||
|
16
|
16
1T8-24256-00-00
Graphic, Fuel Tnk 9
|
1T8-24256-00-00 |
— | ||
|
17
|
17
1M3-24257-00-00
Grphc, Fuel Tank 10
10 |
1M3-24257-00-00 |
— | ||
|
18
|
18
1M3-82519-01-00
Wire, Earth Lead
|
1M3-82519-01-00 |
— | ||
|
19
|
19
1M3-28100-10-00
Tool Kit
|
1M3-28100-10-00 |
— | ||
|
20
|
20
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.72 |
||
|
21
|
21
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
