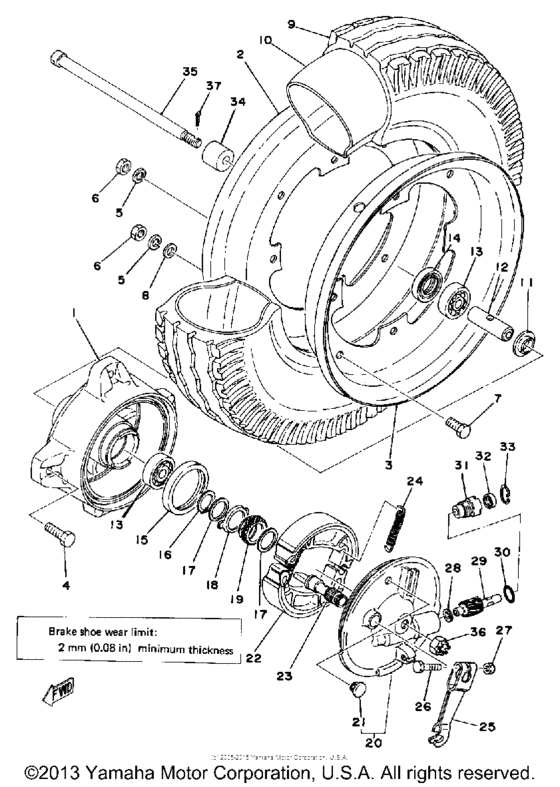

Front wheel Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-25111-01-35 Hub, Front |
439-25111-01-35 |
US $179.28 |
||
|
2
|
2
1M3-25337-00-35
Panel, Wheel 1
|
1M3-25337-00-35 |
— | ||
|
3
|
3
1M3-25347-10-35
Panel, Wheel 2
|
1M3-25347-10-35 |
— | ||
|
4
|
4
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
7
|
7
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
7
|
7
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
9
|
9
941-40103-67-00
Tire 400X10 Nt-116
400X10 NT-116 |
941-40103-67-00 |
— | ||
|
10
|
10
942-35102-02-00
Tube
|
942-35102-02-00 |
— | ||
|
11
|
11
2E9-25116-00-00 Flange, Spacer 2 |
2E9-25116-00-00 |
from US $3.47 |
||
|
12
|
12
90560-10104-00 Spacer |
90560-10104-00 |
from US $7.78 |
||
|
13
|
13
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $10.10 |
||
|
14
|
14
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
15
|
15
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
16
|
16
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
17
|
17
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
18
|
18
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
19
|
19
1T8-25135-00-00
Gear, Drive
|
1T8-25135-00-00 |
— | ||
|
20
|
20
1T8-25120-00-38
New Genuine Part
IN PRICE BOOK |
1T8-25120-00-38 |
— | ||
|
21
|
21
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
22
|
22
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
22
|
22
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
23
|
23
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
23
|
23
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
24
|
24
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
25
|
25
538-25155-00-00
Lever, Camshaft 1
|
538-25155-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
27
|
27
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
28
|
28
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
29
|
29
1T8-25138-00-00
Gear, Meter
|
1T8-25138-00-00 |
— | ||
|
30
|
30
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
30
|
30
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
|
31
|
31
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
32
|
32
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
33
|
33
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
34
|
34
90387-10081-00 Collar |
90387-10081-00 |
from US $9.63 |
||
|
35
|
35
1T8-25181-00-00
Axle, Wheel
|
1T8-25181-00-00 |
— | ||
|
36
|
36
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
36
|
36
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
37
|
37
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
