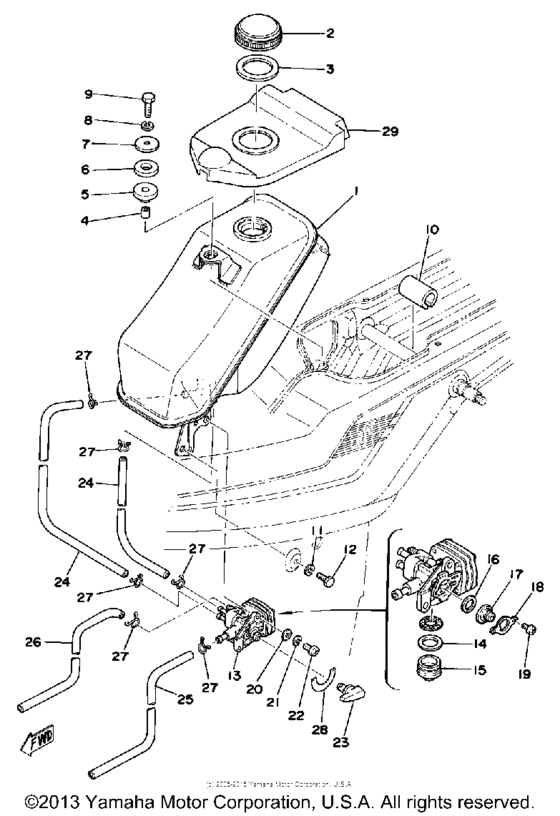

Fuel tank Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M3-24110-00-33
Fuel Tank
|
1M3-24110-00-33 |
— | ||
|
2
|
2
22F-24610-10-00 Cap Assembly |
22F-24610-10-00 |
from US $18.70 |
||
|
3
|
3
296-24612-00-00 Packing, Cap |
296-24612-00-00 |
from US $9.63 |
||
| replacement | |||||
|
3
|
3
3T5-24612-20-00 Packing, Cap |
3T5-24612-20-00 |
from US $7.64 |
||
|
4
|
4
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
4
|
4
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
5
|
5
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.98 |
||
|
6
|
6
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
7
|
7
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
439-24181-00-00
Damper, Locating 1
|
439-24181-00-00 |
— | ||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
13
|
13
1M3-24500-00-00
Fuel Cock Assembly 1
|
1M3-24500-00-00 |
— | ||
|
14
|
14
266-24522-00-00 Gasket |
266-24522-00-00 |
from US $5.24 |
||
|
15
|
15
395-24521-00-00
Cup, Filter
|
395-24521-00-00 |
— | ||
|
16
|
16
266-24523-00-00 Valve |
266-24523-00-00 |
from US $12.47 |
||
|
17
|
17
1M3-24523-00-00
Valve
|
1M3-24523-00-00 |
— | ||
|
18
|
18
439-24525-00-00
Plate, Lvr Fitting
|
439-24525-00-00 |
— | ||
|
19
|
19
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
20
|
20
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
22
|
22
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
23
|
23
1M3-24524-00-00
Lever, Cock
|
1M3-24524-00-00 |
— | ||
|
24
|
24
90445-09083-00 Hose (L155) |
90445-09083-00 |
from US $6.52 |
||
| replacements | |||||
|
24
|
24
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
24
|
24
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
25
|
25
90445-09073-00 Hose (L420) |
90445-09073-00 |
from US $6.52 |
||
| replacement | |||||
|
25
|
25
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
26
|
26
1M3-24335-00-00
Pipe, Suction 1
|
1M3-24335-00-00 |
— | ||
|
27
|
27
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
28
|
28
1T8-24549-00-00
Emblem, Fuel Cock
|
1T8-24549-00-00 |
— | ||
|
29
|
29
1M3-24198-00-00
Seat, Rubber
|
1M3-24198-00-00 |
— | ||
