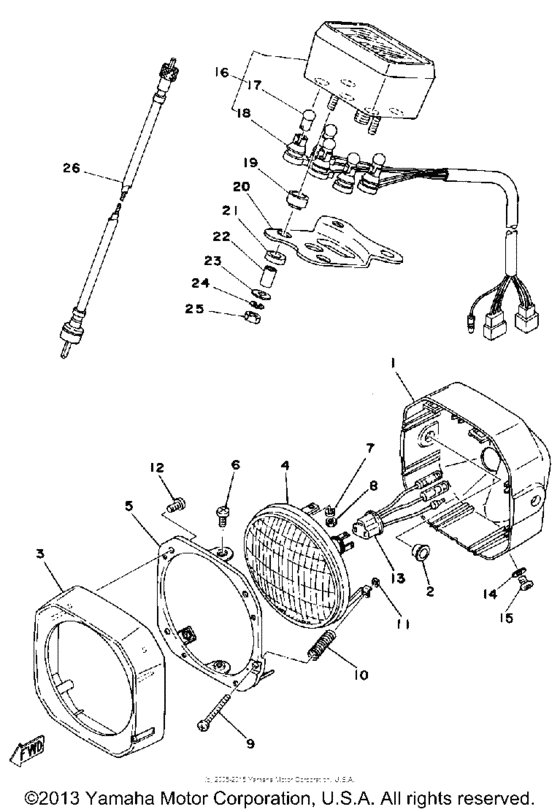

Head lamp - speedometer Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M3-84111-02-1A
Body Headlight
|
1M3-84111-02-1A |
— | ||
|
2
|
2
1M3-84145-01-00
Collar, Body Ftng
|
1M3-84145-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
1T8-84115-60-26
Rim, Headlight
|
1T8-84115-60-26 |
— | ||
|
4
|
4
388-84120-61-00 Lens Assembly |
388-84120-61-00 |
US $174.74 |
||
|
5
|
5
1T8-84194-60-00
Ring, Mounting
|
1T8-84194-60-00 |
— | ||
|
6
|
6
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
7
|
7
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
9
|
9
1T8-84131-60-00
Screw, Rim Adjuster
|
1T8-84131-60-00 |
— | ||
|
10
|
10
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
11
|
11
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
12
|
12
977-80401-14-00 Screw, Tapping |
977-80401-14-00 |
US $2.55 |
||
| replacement | |||||
|
12
|
12
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
13
|
13
371-84312-60-00 Socket |
371-84312-60-00 |
from US $34.06 |
||
|
14
|
14
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
15
|
15
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
16
|
16
1T8-83510-60-00
Speedometer Assembly
|
1T8-83510-60-00 |
— | ||
|
17
|
17
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S6V1CP BA9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
17
|
17
122-83516-10-XX
Bulb
6V1CP BA9S |
122-83516-10-XX |
— | ||
|
18
|
18
1T8-83520-00-00
Socket Cord Assembly
|
1T8-83520-00-00 |
— | ||
|
19
|
19
1M3-83513-00-00
Damper
|
1M3-83513-00-00 |
— | ||
|
20
|
20
1M3-83519-00-33
Bracket, Meter
|
1M3-83519-00-33 |
— | ||
|
21
|
21
355-83526-00-00 Damper 2 |
355-83526-00-00 |
from US $2.98 |
||
|
22
|
22
355-83522-00-00 Collar |
355-83522-00-00 |
US $9.79 |
||
|
23
|
23
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
26
|
26
3T5-83550-80-00 Speedometer Cable |
3T5-83550-80-00 |
from US $42.83 |
||
