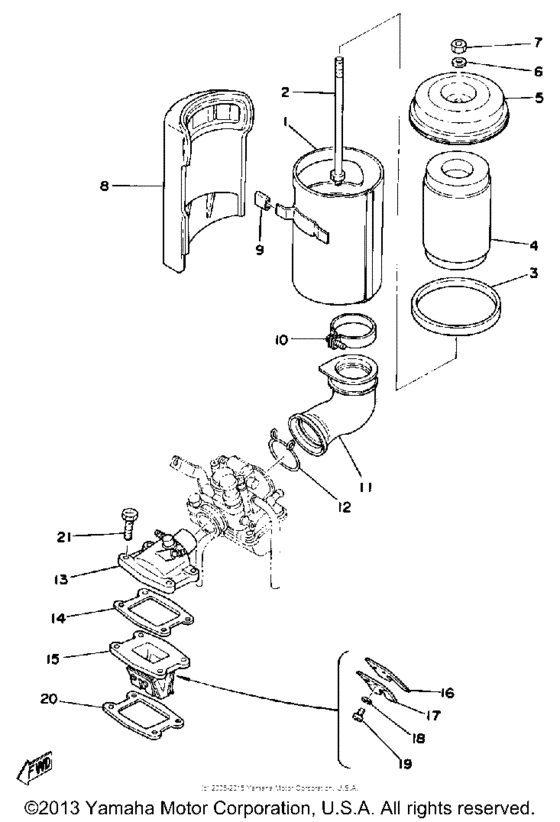

Intake Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M3-14411-01-00
Case, Air Cleaner 1
|
1M3-14411-01-00 |
— | ||
|
2
|
2
90116-06233-00 Bolt, Stud |
90116-06233-00 |
US $6.61 |
||
|
3
|
3
1M3-14416-01-00
Gasket, Air Cleaner
|
1M3-14416-01-00 |
— | ||
|
4
|
4
1M3-14451-00-00
Element, Air Clnr
|
1M3-14451-00-00 |
— | ||
|
5
|
5
1M3-14412-00-00
Cap, Cleaner Case 1
|
1M3-14412-00-00 |
— | ||
|
6
|
6
90430-06180-00 Gasket |
90430-06180-00 |
from US $2.09 |
||
| replacement | |||||
|
6
|
6
904-30062-18-00 Gasket(J17) |
904-30062-18-00 |
from US $2.50 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
8
|
8
1M3-14454-02-00
Joint
|
1M3-14454-02-00 |
— | ||
|
9
|
9
90480-01200-00
Grommet
|
90480-01200-00 |
— | ||
|
10
|
10
90460-39052-00 Clamp, Hose |
90460-39052-00 |
from US $7.79 |
||
| replacement | |||||
|
10
|
10
90460-41191-00 Clamp, Hose (5R2) |
90460-41191-00 |
from US $7.79 |
||
|
11
|
11
1M4-14453-00-00
Joint, Air Clnr 1
|
1M4-14453-00-00 |
— | ||
|
12
|
12
90467-20023-00 Clip |
90467-20023-00 |
from US $1.70 |
||
|
13
|
13
1F5-13565-00-00
Joint, Carburetor
|
1F5-13565-00-00 |
— | ||
|
14
|
14
1F5-13622-01-00 Gasket,valve Seat |
1F5-13622-01-00 |
from US $4.88 |
||
| replacement | |||||
|
14
|
14
1F5-13622-02-00 Gasket, Valve Seat |
1F5-13622-02-00 |
from US $2.20 |
||
|
15
|
15
1F5-13610-00-00
Reed Valve Assembly
|
1F5-13610-00-00 |
— | ||
|
16
|
16
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
17
|
17
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
17
|
17
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
18
|
18
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
19
|
19
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
20
|
20
1F5-13621-01-00 Gasket,valve Seat |
1F5-13621-01-00 |
from US $3.28 |
||
| replacement | |||||
|
20
|
20
1F5-13621-02-00 Gasket, Valve Seat |
1F5-13621-02-00 |
from US $3.28 |
||
|
21
|
21
901-53060-16-00
Screw, Hexagon
|
901-53060-16-00 |
— | ||
