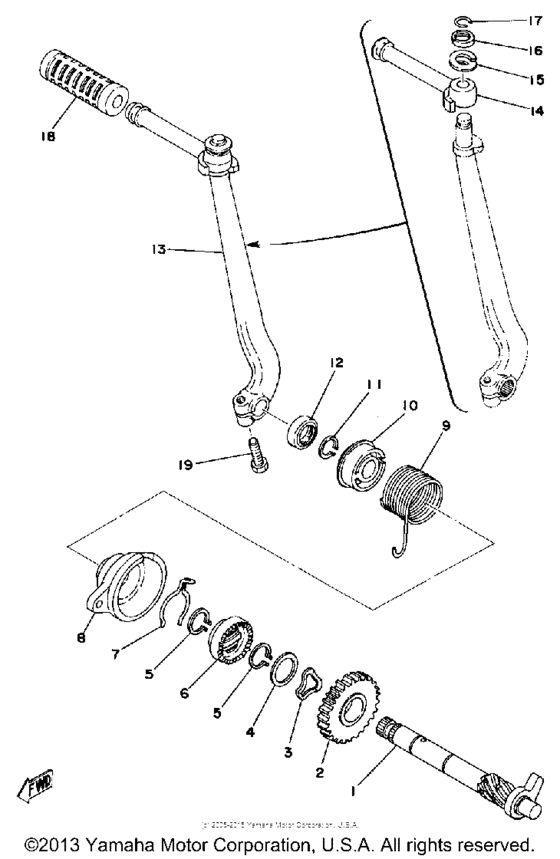

Kick starter Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517-15660-01-00 Kick Axle Assembly |
517-15660-01-00 |
from US $95.74 |
||
|
2
|
2
296-15641-00-00
Gear, Kick
|
296-15641-00-00 |
— | ||
|
3
|
3
90206-19027-00 Washer, Wave |
90206-19027-00 |
from US $1.84 |
||
|
4
|
4
296-15644-00-00 Shim |
296-15644-00-00 |
from US $3.40 |
||
|
5
|
5
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
6
|
6
296-15671-00-00 Wheel, Ratchet |
296-15671-00-00 |
from US $27.91 |
||
|
7
|
7
90468-26046-00 Clip |
90468-26046-00 |
from US $3.54 |
||
|
8
|
8
1W7-15664-00-00 Guide,spring |
1W7-15664-00-00 |
from US $15.12 |
||
| replacement | |||||
|
8
|
8
1W7-15664-01-00 Guide, Spring |
1W7-15664-01-00 |
from US $16.29 |
||
|
9
|
9
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
10
|
10
132-15676-01-00 Cover, Spring |
132-15676-01-00 |
from US $9.92 |
||
|
11
|
11
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
12
|
12
93109-15001-00 Oil Seal |
93109-15001-00 |
from US $4.43 |
||
|
13
|
13
1L7-15610-00-93
New Genuine Part
IN PRICE BOOK |
1L7-15610-00-93 |
— | ||
|
14
|
14
214-15612-09-00
Lever, Kick
|
214-15612-09-00 |
— | ||
|
15
|
15
90504-18031-00 Spring, Compression |
90504-18031-00 |
from US $3.05 |
||
|
16
|
16
90209-10108-00
Washer,spec'l Shape
|
90209-10108-00 |
— | ||
| replacement | |||||
|
16
|
16
902-09102-10-00
Washer (5L1)
|
902-09102-10-00 |
— | ||
|
17
|
17
934-40100-28-00
Circlip, Outer
|
934-40100-28-00 |
— | ||
|
18
|
18
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $4.58 |
||
|
19
|
19
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
19
|
19
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
