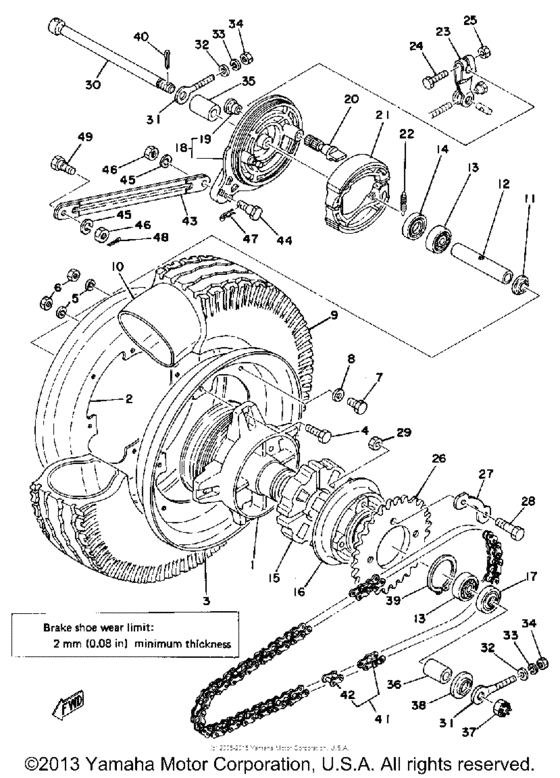

Rear wheel Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
561-25311-00-00 Hub, Rear |
561-25311-00-00 |
US $265.87 |
||
| replacement | |||||
|
1
|
1
561-25311-00-35 Hub, Rear |
561-25311-00-35 |
US $228.04 |
||
|
2
|
2
1M3-25337-00-35
Panel, Wheel 1
|
1M3-25337-00-35 |
— | ||
|
3
|
3
1M3-25347-10-35
Panel, Wheel 2
|
1M3-25347-10-35 |
— | ||
|
4
|
4
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
7
|
7
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
7
|
7
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
9
|
9
941-40103-67-00
Tire 400X10 Nt-116
400X10 NT-116 |
941-40103-67-00 |
— | ||
|
10
|
10
942-35102-02-00
Tube
|
942-35102-02-00 |
— | ||
|
11
|
11
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
12
|
12
90560-12110-00 Spacer (439-25317-00)439-25317-00 |
90560-12110-00 |
US $15.32 |
||
|
13
|
13
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
13
|
13
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
14
|
14
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
15
|
15
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $5.40 |
||
|
16
|
16
561-25366-00-00 Clutch, Hub |
561-25366-00-00 |
US $151.98 |
||
|
17
|
17
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
18
|
18
355-25320-00-38
Brake Shoe Plt Assembly
|
355-25320-00-38 |
— | ||
|
19
|
19
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
20
|
20
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
20
|
20
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
21
|
21
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
21
|
21
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
22
|
22
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
23
|
23
1M3-25355-01-00
Lever, Camshaft
|
1M3-25355-01-00 |
— | ||
|
24
|
24
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
25
|
25
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
26
|
26
122-25436-10-00 Sprocket, Drvn 36T36T |
122-25436-10-00 |
from US $28.53 |
||
|
27
|
27
102-25412-00-00 Washer, Lock |
102-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
27
|
27
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
27
|
27
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
28
|
28
90101-08672-00 Bolt |
90101-08672-00 |
from US $1.70 |
||
|
29
|
29
90179-08639-00 Nut, Spec''l Shape (30)30 |
90179-08639-00 |
from US $1.81 |
||
|
30
|
30
439-25381-01-00 Axle, Wheel |
439-25381-01-00 |
from US $49.48 |
||
|
31
|
31
102-25389-00-00 Puller, Chain |
102-25389-00-00 |
from US $10.58 |
||
| replacements | |||||
|
31
|
31
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
31
|
31
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $12.35 |
||
|
32
|
32
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
32
|
32
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
32
|
32
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
35
|
35
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
36
|
36
90387-120F9-00 Collar |
90387-120F9-00 |
from US $5.13 |
||
|
37
|
37
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
37
|
37
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
38
|
38
561-25367-00-00
Cover, Hub Dust
|
561-25367-00-00 |
— | ||
|
39
|
39
93410-47030-00 Circlip, S-Type |
93410-47030-00 |
US $10.20 |
||
|
40
|
40
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
40
|
40
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
41
|
41
94580-52096-00 Chain (Did420M 96L) |
94580-52096-00 |
from US $20.97 |
||
| replacement | |||||
|
41
|
41
9Y5-80520-95-00 Chain, Drive |
9Y5-80520-95-00 |
from US $21.73 |
||
|
42
|
42
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
|
43
|
43
561-25371-00-00 Bar, Tension |
561-25371-00-00 |
US $35.26 |
||
|
44
|
44
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
44
|
44
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
45
|
45
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
46
|
46
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
46
|
46
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
47
|
47
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
47
|
47
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
48
|
48
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
49
|
49
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
