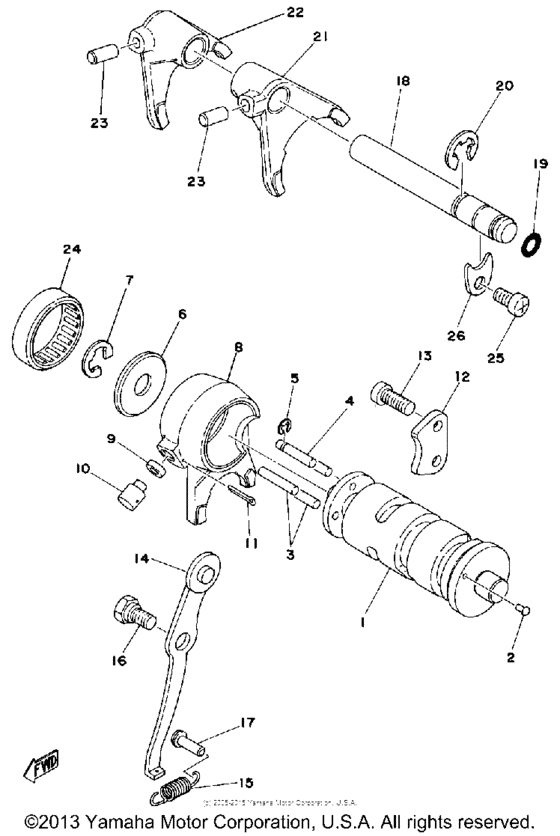

Shift shaft (1) Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T8-18541-00-00
Cam, Shift
|
1T8-18541-00-00 |
— | ||
|
2
|
2
136-18542-00-00 Point, Neutral |
136-18542-00-00 |
from US $1.98 |
||
|
3
|
3
93604-22050-00 Pin, Dowel |
93604-22050-00 |
from US $1.84 |
||
|
4
|
4
90249-04039-00
Pin, Spec''l Shape (174-18544
174-18544-0 |
90249-04039-00 |
— | ||
|
5
|
5
93430-03014-00
Circlip, E-Type
|
93430-03014-00 |
— | ||
|
6
|
6
296-18561-00-00 Plate, Side 1 |
296-18561-00-00 |
from US $2.69 |
||
|
7
|
7
990-01096-00-00
Circlip (E) (99001-09600-00)
99001-09600-00 |
990-01096-00-00 |
— | ||
| replacement | |||||
|
7
|
7
99080-09600-00 Circlip (E) (99001-09600-00)99001-09600-00 |
99080-09600-00 |
from US $1.50 |
||
|
8
|
8
296-18511-00-00
Fork, Shift 1
|
296-18511-00-00 |
— | ||
|
9
|
9
136-18551-00-00
Pin, Spec''l Shape
|
136-18551-00-00 |
— | ||
| replacement | |||||
|
9
|
9
902-49050-35-00
Pin, Spec''l Shape
|
902-49050-35-00 |
— | ||
|
10
|
10
902-49050-41-00
Pin, Spec''l Shape
|
902-49050-41-00 |
— | ||
|
11
|
11
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
11
|
11
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
12
|
12
296-18562-01-00 Plate, Stopper 2 |
296-18562-01-00 |
from US $9.34 |
||
|
13
|
13
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
13
|
13
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
14
|
14
296-18140-02-00 Stopper Lever Assy |
296-18140-02-00 |
from US $11.23 |
||
| replacement | |||||
|
14
|
14
296-18140-03-00 Stopper Lever Assy |
296-18140-03-00 |
from US $12.33 |
||
|
15
|
15
905-06091-26-00
Spring, Tension
|
905-06091-26-00 |
— | ||
|
16
|
16
90109-06001-00 Bolt 132181770000 |
90109-06001-00 |
from US $2.13 |
||
| replacement | |||||
|
16
|
16
901-09062-39-00 Bolt |
901-09062-39-00 |
from US $1.47 |
||
|
17
|
17
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
18
|
18
441-18531-01-00 Bar, Shif Frk Gde 1 |
441-18531-01-00 |
US $14.03 |
||
|
19
|
19
93210-08006-00 O-Ring |
93210-08006-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
93210-08003-00 O-Ring |
93210-08003-00 |
from US $1.70 |
||
|
20
|
20
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
21
|
21
296-18512-01-00
Fork, Shift 2
|
296-18512-01-00 |
— | ||
|
22
|
22
296-18513-01-00
Fork, Shift 3
|
296-18513-01-00 |
— | ||
|
23
|
23
93606-14081-00 Pin, Dowel |
93606-14081-00 |
from US $1.28 |
||
|
24
|
24
93315-23208-00 Bearing |
93315-23208-00 |
from US $12.33 |
||
|
25
|
25
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
26
|
26
296-18549-00-00
Stopper
|
296-18549-00-00 |
— | ||
