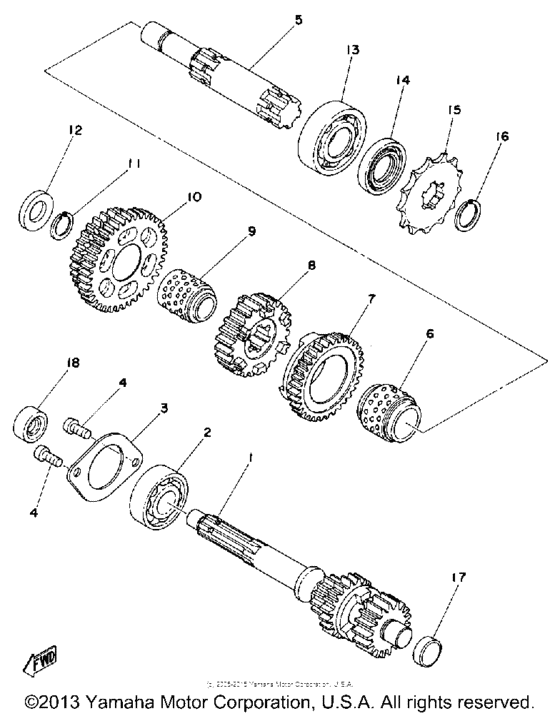

Transmission Diagram Yamaha LB80
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517-17410-02-00
Main Axle
|
517-17410-02-00 |
— | ||
|
2
|
2
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
3
|
3
296-17471-00-00 Plate, Cover |
296-17471-00-00 |
from US $2.69 |
||
|
4
|
4
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
5
|
5
517-17421-00-00
Axle, Drive
|
517-17421-00-00 |
— | ||
|
6
|
6
296-17224-01-00
Bearing, Slide 2
|
296-17224-01-00 |
— | ||
|
7
|
7
517-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
517-17221-00-00 |
— | ||
|
8
|
8
517-17231-01-00
Gear, 3Rd Wheel
3RD WHEEL |
517-17231-01-00 |
— | ||
|
9
|
9
296-17214-03-00
Bearing, Side 1
|
296-17214-03-00 |
— | ||
|
10
|
10
296-17211-02-00
Gear, 1St Wheel
1ST WHEEL |
296-17211-02-00 |
— | ||
|
11
|
11
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
11
|
11
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
12
|
12
517-17427-00-36
Shim 1
U.R |
517-17427-00-36 |
— | ||
|
12
|
12
517-17427-00-38
Shim 1
U.R |
517-17427-00-38 |
— | ||
|
13
|
13
933-06204-21-00
Bearing
|
933-06204-21-00 |
— | ||
| replacement | |||||
|
13
|
13
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.53 |
||
|
14
|
14
931-02201-43-00 Oil Seal |
931-02201-43-00 |
from US $7.21 |
||
|
15
|
15
93812-14035-00 Sprocket, Drive (14T)14T |
93812-14035-00 |
from US $24.51 |
||
|
15
|
15
93812-15063-00 Sprocket, Drive 15T (517174615215T 5171746152 |
93812-15063-00 |
from US $21.50 |
||
|
15
|
15
938-12130-22-00 Sprocket, Drive 13T13T |
938-12130-22-00 |
from US $17.28 |
||
|
16
|
16
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
17
|
17
90338-18064-00 Plug |
90338-18064-00 |
from US $3.60 |
||
|
18
|
18
93104-11053-00 Oil Seal |
93104-11053-00 |
from US $7.08 |
||
