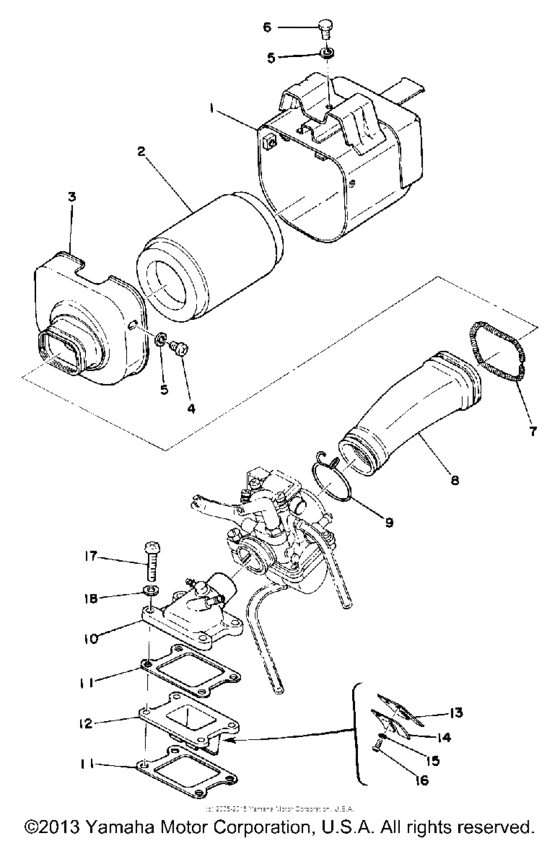

Air filter Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1V8-W1441-01-00
Case, Air Clnr 1
|
1V8-W1441-01-00 |
— | ||
|
2
|
2
1V8-14451-00-00 Element, Air Clnr |
1V8-14451-00-00 |
from US $11.04 |
||
| replacement | |||||
|
2
|
2
1V8-14451-01-00 Air Filter Cleaner Element |
1V8-14451-01-00 |
US $12.29 |
||
|
3
|
3
1V8-W1441-01-00
Case, Air Clnr 1
|
1V8-W1441-01-00 |
— | ||
|
4
|
4
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
6
|
6
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
7
|
7
90506-06075-00 Spring, Tension |
90506-06075-00 |
from US $4.68 |
||
|
8
|
8
439-14453-01-00 Joint, Air Clnr 1 |
439-14453-01-00 |
from US $28.48 |
||
|
9
|
9
90467-20023-00 Clip |
90467-20023-00 |
from US $1.70 |
||
|
10
|
10
1F5-13565-00-00
Joint, Carburetor
|
1F5-13565-00-00 |
— | ||
|
11
|
11
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $6.94 |
||
|
12
|
12
353-13610-01-00
Reed Valve Assembly
|
353-13610-01-00 |
— | ||
|
13
|
13
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
14
|
14
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
14
|
14
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
15
|
15
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
16
|
16
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
17
|
17
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
