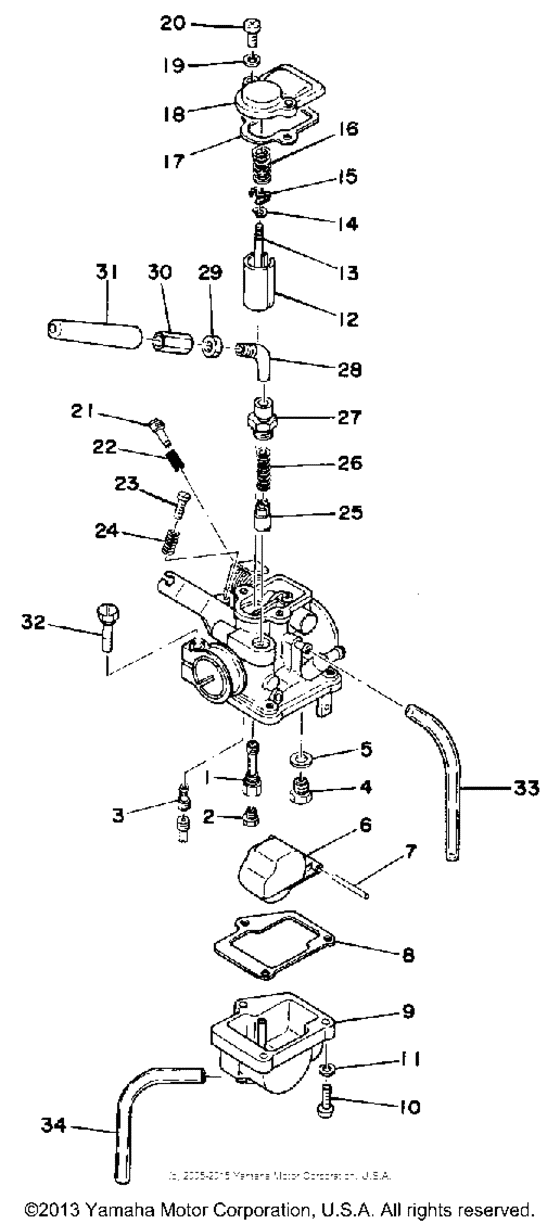

Carburetor Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
127-14141-14-00 Nozzle, Main |
127-14141-14-00 |
from US $24.09 |
||
|
1
|
1
442-14101-00-00
Carburetor Assembly 1
|
442-14101-00-00 |
— | ||
|
2
|
2
127-14143-14-00
Jet, Main #70
#70 UR STD |
127-14143-14-00 |
— | ||
|
2
|
2
127-14143-13-00
Jet, Main #65
#65 UR STD |
127-14143-13-00 |
— | ||
|
2
|
2
127-14143-15-00
Jet, Main #75
#75 UR STD |
127-14143-15-00 |
— | ||
|
3
|
3
193-14142-15-A0 Jet, Pilot (# 15)# 15 |
193-14142-15-A0 |
from US $10.46 |
||
|
4
|
4
2E9-14190-12-00 Needle Valve Assembly (127-14127-14 |
2E9-14190-12-00 |
from US $61.88 |
||
|
5
|
5
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
6
|
6
439-14185-00-00
Float
|
439-14185-00-00 |
— | ||
|
7
|
7
439-14186-00-00 Pin, Float |
439-14186-00-00 |
from US $9.59 |
||
|
8
|
8
439-14184-00-00 Gasket, Float Chmbr |
439-14184-00-00 |
from US $23.94 |
||
|
9
|
9
439-14184-00-00 Gasket, Float Chmbr |
439-14184-00-00 |
from US $23.94 |
||
|
10
|
10
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
439-14112-20-00
Valve, Throttle 1
|
439-14112-20-00 |
— | ||
|
13
|
13
127-14116-09-00 Needle |
127-14116-09-00 |
from US $16.45 |
||
|
14
|
14
127-14137-00-00 Clip |
127-14137-00-00 |
from US $7.70 |
||
|
15
|
15
439-14136-01-00
Seat, Spring
|
439-14136-01-00 |
— | ||
|
16
|
16
439-14131-00-00
Spring, Thrtl Valve
|
439-14131-00-00 |
— | ||
|
17
|
17
439-14198-01-00 Gasket |
439-14198-01-00 |
from US $10.91 |
||
|
18
|
18
439-14158-00-00
Top, Mixing Chamber
|
439-14158-00-00 |
— | ||
|
19
|
19
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
20
|
20
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
21
|
21
127-W1412-00-00 Screw, Air Adjusting.set |
127-W1412-00-00 |
from US $17.33 |
||
|
22
|
22
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
23
|
23
98302-03012-00
Screw, Cylinder.head
|
98302-03012-00 |
— | ||
| replacement | |||||
|
23
|
23
98301-03012-00
Screw, Cylinder Head
|
98301-03012-00 |
— | ||
|
24
|
24
620-14133-00-00 Spring, Throttle Stop (#37.5) |
620-14133-00-00 |
US $2.23 |
||
|
25
|
25
58E-14171-00-00 Plunger, Starter |
58E-14171-00-00 |
from US $26.21 |
||
| replacement | |||||
|
25
|
25
3XV-14171-00-00 Plunger, Starter |
3XV-14171-00-00 |
from US $18.28 |
||
|
26
|
26
127-14135-00-00 Coil, Spring |
127-14135-00-00 |
from US $4.58 |
||
|
27
|
27
439-14174-01-00
Cap, Plunger
|
439-14174-01-00 |
— | ||
|
28
|
28
439-14155-00-00
Guide, Cable
|
439-14155-00-00 |
— | ||
|
29
|
29
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
30
|
30
17L-14106-00-00 Cable Adjust Screw Set |
17L-14106-00-00 |
from US $3.72 |
||
|
31
|
31
439-14169-00-00 Cap |
439-14169-00-00 |
US $36.70 |
||
|
32
|
32
439-14125-00-00
Screw, Body Fitting
|
439-14125-00-00 |
— | ||
|
33
|
33
440-14197-00-00
Pipe, Airvent
|
440-14197-00-00 |
— | ||
|
34
|
34
353-14196-00-00
Pipe, Overflow
|
353-14196-00-00 |
— | ||
| replacement | |||||
|
34
|
34
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
