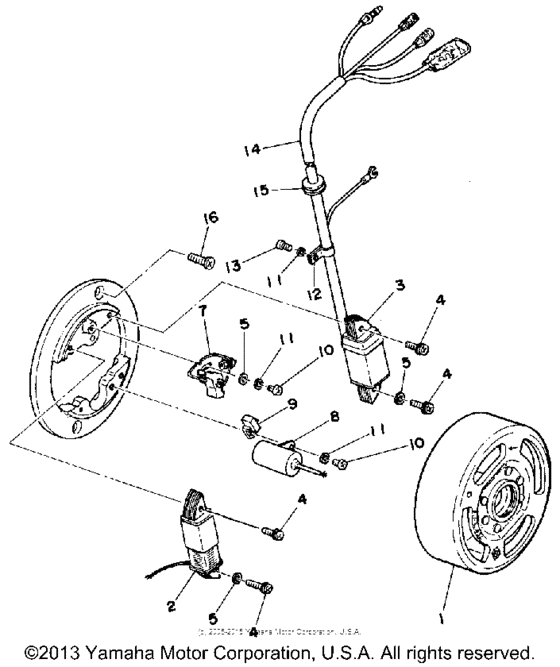

CDI & magneto Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
511-81350-20-00
Rotor Assembly
|
511-81350-20-00 |
— | ||
|
1
|
1
542-81300-20-00
New Genuine Part
IN PRICE BOOK |
542-81300-20-00 |
— | ||
|
2
|
2
511-81312-20-00 Coil, Source |
511-81312-20-00 |
US $176.87 |
||
|
3
|
3
542-81313-20-00
Coil, Lighting 1
|
542-81313-20-00 |
— | ||
|
4
|
4
97602-04125-00 Screw, Pan Head With Washer4-2 4 |
97602-04125-00 |
US $1.21 |
||
| replacement | |||||
|
4
|
4
98517-04025-00 Screw, Pan Head4-2 4 |
98517-04025-00 |
from US $1.21 |
||
|
5
|
5
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
7
|
7
2A6-81321-20-00 Contact Brkr Assemblyassy |
2A6-81321-20-00 |
from US $56.34 |
||
|
8
|
8
1K8-81325-20-00 Condenser 1 |
1K8-81325-20-00 |
from US $46.28 |
||
|
9
|
9
116-81331-20-00 Lubricator |
116-81331-20-00 |
US $4.41 |
||
|
10
|
10
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
10
|
10
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
104-81328-20-00 Clamp |
104-81328-20-00 |
from US $2.69 |
||
|
13
|
13
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
14
|
14
542-81315-20-00
Lead Wire Assembly
|
542-81315-20-00 |
— | ||
|
15
|
15
90480-16304-00 Grommet (90480-16110-00)90480-16110-00 |
90480-16304-00 |
from US $2.27 |
||
|
16
|
16
98701-05016-00 Screw, Flat Head |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
16
|
16
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
16
|
16
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
