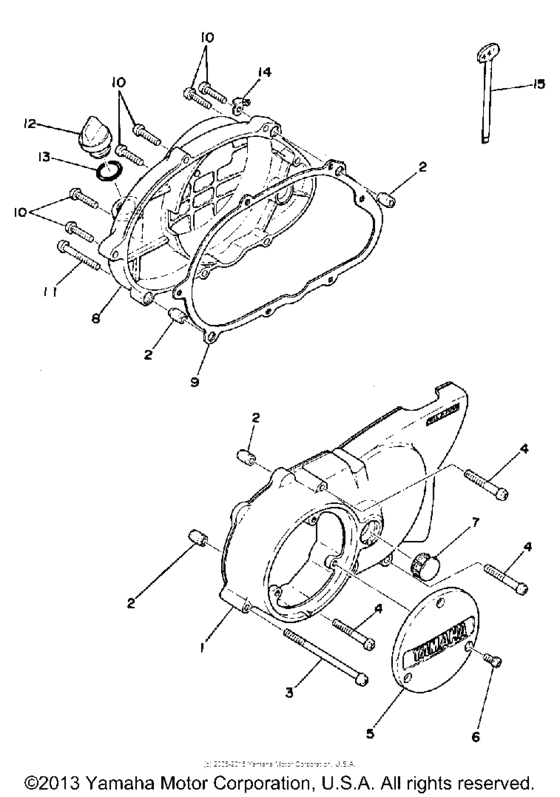

Crankcase cover Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
441-15411-00-00
Cover, Crankcase L
|
441-15411-00-00 |
— | ||
|
2
|
2
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
2
|
2
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
2
|
2
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
3
|
3
98501-06100-00 Screw Pan Head |
98501-06100-00 |
from US $1.98 |
||
| replacement | |||||
|
3
|
3
98507-06100-00 Screw, Pan Head |
98507-06100-00 |
from US $1.98 |
||
|
4
|
4
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
5
|
5
395-15415-00-00
Cover, Generator
|
395-15415-00-00 |
— | ||
|
6
|
6
98780-05012-00 Screw, Flat Head |
98780-05012-00 |
from US $2.69 |
||
|
7
|
7
441-15417-01-00
Cover, Cap
|
441-15417-01-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
441-15421-00-00
Cover, Crankcase R
|
441-15421-00-00 |
— | ||
|
9
|
9
296-15451-03-00 Gasket, Crcs Cover |
296-15451-03-00 |
from US $17.43 |
||
|
10
|
10
98501-08025-00 Screw,pan Head |
98501-08025-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
98507-08025-00 Screw, Pan Head |
98507-08025-00 |
from US $0.90 |
||
|
11
|
11
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
12
|
12
1RG-15362-00-00
New Genuine Part
IN PRICE BOOK 353- |
1RG-15362-00-00 |
— | ||
|
13
|
13
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
|
14
|
14
439-15378-00-00
Holder
|
439-15378-00-00 |
— | ||
|
15
|
15
441-15361-01-00
Gauge, Level
|
441-15361-01-00 |
— | ||
