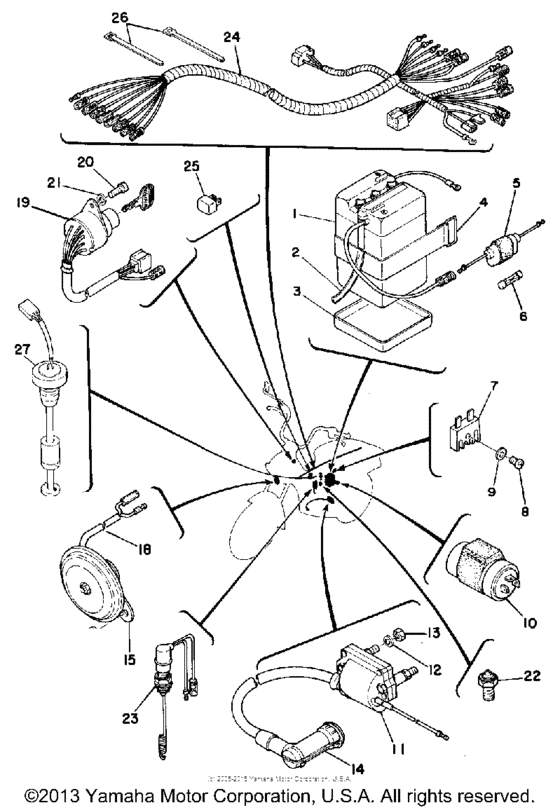

Electrical Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
2
|
2
90445-08247-00 Hose (L500) |
90445-08247-00 |
US $10.91 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
268-82122-00-00
Seat, Battery
|
268-82122-00-00 |
— | ||
|
4
|
4
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
4
|
4
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
5
|
5
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
5
|
5
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
6
|
6
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
7
|
7
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
7
|
7
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
7
|
7
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
8
|
8
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
9
|
9
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
10
|
10
542-83350-60-00
Flasher Relay Assembly
|
542-83350-60-00 |
— | ||
|
11
|
11
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
15
|
15
439-83371-11-00 Horn |
439-83371-11-00 |
from US $62.96 |
||
| replacement | |||||
|
15
|
15
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
16
|
16
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
395-83373-00-00
Lead, Horn
|
395-83373-00-00 |
— | ||
|
19
|
19
542-82508-20-00
Main Switch Assembly
|
542-82508-20-00 |
— | ||
|
20
|
20
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
20
|
20
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
21
|
21
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
22
|
22
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
22
|
22
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
22
|
22
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $24.58 |
||
|
23
|
23
1J7-82530-02-00
Stop Switch
|
1J7-82530-02-00 |
— | ||
|
24
|
24
542-82590-21-00
Wire Harness Assembly
|
542-82590-21-00 |
— | ||
|
25
|
25
441-81980-60-00
Diode
|
441-81980-60-00 |
— | ||
|
26
|
26
561-20000-20-00
Strap
M5-036 |
561-20000-20-00 |
— | ||
|
27
|
27
4L0-85720-00-00
Oil Lvl Guage Assembly
|
4L0-85720-00-00 |
— | ||
