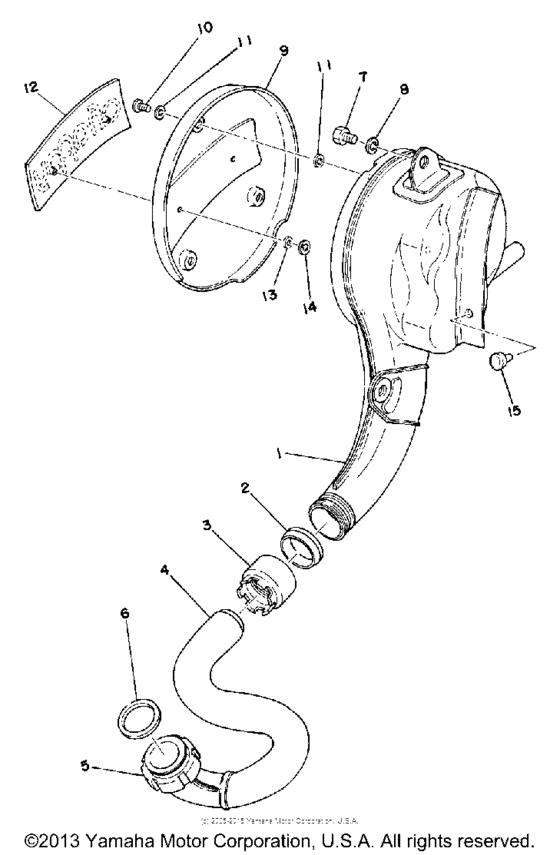

Exhaust Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-14710-01-00
Muffler Assembly L
|
439-14710-01-00 |
— | ||
|
2
|
2
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
3
|
3
395-14713-00-00 Nut, Muffler Joint |
395-14713-00-00 |
from US $25.11 |
||
|
4
|
4
439-14611-03-00 Pipe, Exhaust L |
439-14611-03-00 |
US $104.76 |
||
|
5
|
5
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
6
|
6
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
7
|
7
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
7
|
7
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
441-14718-01-00
Protector, Muff 1
|
441-14718-01-00 |
— | ||
|
10
|
10
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
10
|
10
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
10
|
10
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
11
|
11
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
12
|
12
439-14729-00-00 Emblem, Protector |
439-14729-00-00 |
from US $59.69 |
||
|
13
|
13
90202-04003-00 Washer, Plate |
90202-04003-00 |
from US $2.41 |
||
|
14
|
14
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
15
|
15
441-14747-00-00
Damper, Muffler
|
441-14747-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
