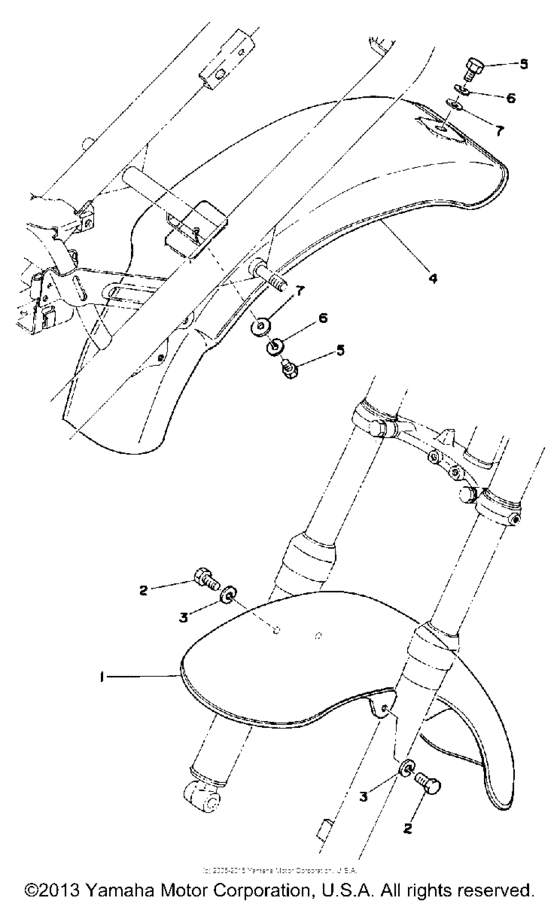

Fender Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
441-21510-00-93
Fender, Front
|
441-21510-00-93 |
— | ||
| replacement | |||||
|
1
|
1
441-21510-00-00
Front Fender Comp
|
441-21510-00-00 |
— | ||
|
2
|
2
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
441-21611-00-93
Fender, Rear
|
441-21611-00-93 |
— | ||
| replacement | |||||
|
4
|
4
1F1-21611-00-93
Fender, Rear
|
1F1-21611-00-93 |
— | ||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
7
|
7
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
