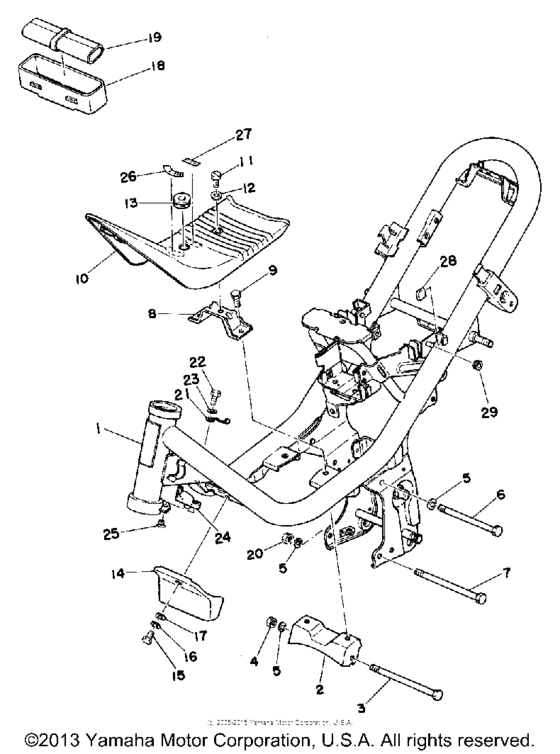

Frame Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L4-21110-01-E1
Frame
RD |
1L4-21110-01-E1 |
— | ||
|
2
|
2
439-21421-00-00
Stay, Rear Upper
BK |
439-21421-00-00 |
— | ||
|
3
|
3
90109-08386-00 Bolt |
90109-08386-00 |
from US $7.79 |
||
|
4
|
4
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
6
|
6
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
7
|
7
90101-08538-00 Bolt |
90101-08538-00 |
from US $7.37 |
||
|
8
|
8
439-28321-00-00
Stay, Leg Shield L
|
439-28321-00-00 |
— | ||
|
9
|
9
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
9
|
9
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
9
|
9
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
10
|
10
439-28385-00-36 Cover, Lower |
439-28385-00-36 |
US $161.59 |
||
| replacement | |||||
|
10
|
10
439-28385-01-00 Cover, Under |
439-28385-01-00 |
US $161.59 |
||
|
11
|
11
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
12
|
12
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
13
|
13
90480-21436-00 Grommet(52W) |
90480-21436-00 |
from US $3.26 |
||
|
14
|
14
439-28386-00-00
Head
|
439-28386-00-00 |
— | ||
|
15
|
15
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
439-21771-00-00
New Genuine Part
IN PRICE BOOK |
439-21771-00-00 |
— | ||
|
19
|
19
2U2-W2810-00-00
Tool Kit
|
2U2-W2810-00-00 |
— | ||
|
20
|
20
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
20
|
20
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
20
|
20
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
21
|
21
439-23319-00-00
Holder, Cable 2
|
439-23319-00-00 |
— | ||
|
22
|
22
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
24
|
24
137-23480-00-00 Steering Lock Assembly |
137-23480-00-00 |
US $57.89 |
||
|
25
|
25
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
25
|
25
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
25
|
25
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
26
|
26
542-28328-00-00
Emblem
|
542-28328-00-00 |
— | ||
|
27
|
27
542-28338-00-00
Emblem
|
542-28338-00-00 |
— | ||
|
28
|
28
561-24723-01-00
Damper, Seat
|
561-24723-01-00 |
— | ||
|
29
|
29
90480-10178-00 Grommet |
90480-10178-00 |
US $2.36 |
||
