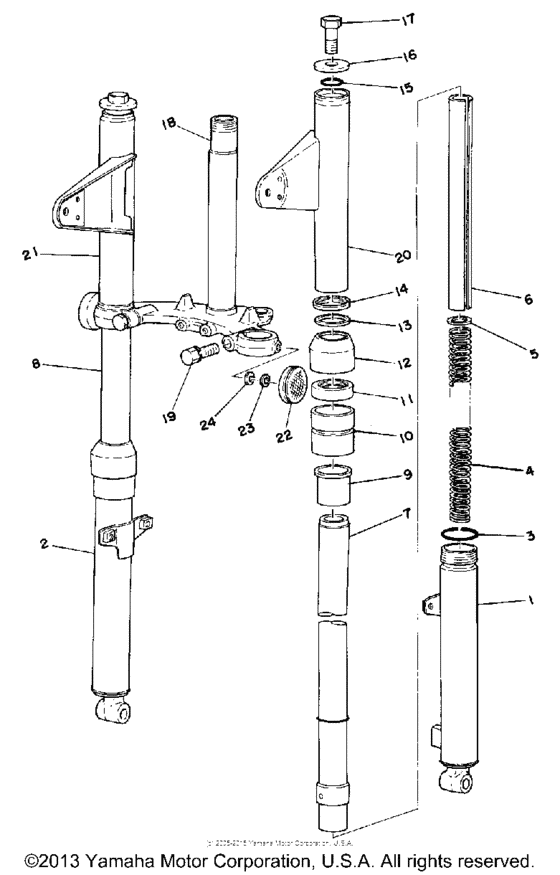

Front fork Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-23101-02-35
Front Fork Assembly
|
439-23101-02-35 |
— | ||
|
1
|
1
439-23126-00-35
Tube, Outer 1
SLVR |
439-23126-00-35 |
— | ||
|
2
|
2
439-23136-00-35
Tube, Outer 2
SLVR |
439-23136-00-35 |
— | ||
|
3
|
3
207-23147-00-00 O-Ring |
207-23147-00-00 |
from US $13.28 |
||
|
4
|
4
367-23141-60-00
Spring, Front Fork
|
367-23141-60-00 |
— | ||
|
5
|
5
290-23149-00-00
Washer, Spring Upr
|
290-23149-00-00 |
— | ||
|
6
|
6
367-23166-60-00
Spacer, Oil Lock
|
367-23166-60-00 |
— | ||
|
7
|
7
439-23124-00-00
Tube, Inner 1
|
439-23124-00-00 |
— | ||
|
8
|
8
1L4-23134-00-00
Tube,inner 2
|
1L4-23134-00-00 |
— | ||
| replacement | |||||
|
8
|
8
439-23134-00-00
Tube, Inner 2
|
439-23134-00-00 |
— | ||
|
9
|
9
109-23125-00-00 Metal, Slide 1 |
109-23125-00-00 |
US $21.29 |
||
|
10
|
10
290-23150-01-00
Outer Nut
|
290-23150-01-00 |
— | ||
|
11
|
11
109-23145-01-00 Oil Seal |
109-23145-01-00 |
from US $33.66 |
||
|
12
|
12
290-23144-00-00 Seal, Dust |
290-23144-00-00 |
from US $24.68 |
||
|
13
|
13
164-23163-00-00 Gasket |
164-23163-00-00 |
from US $7.65 |
||
|
14
|
14
354-23115-90-00
Guide, Cover Upper
|
354-23115-90-00 |
— | ||
|
15
|
15
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
16
|
16
207-23112-00-00 Washer, Cap |
207-23112-00-00 |
from US $14.45 |
||
|
17
|
17
395-23111-00-00 Bolt, Cap |
395-23111-00-00 |
US $20.71 |
||
|
18
|
18
2T5-23340-00-33
Under Bracket
BK |
2T5-23340-00-33 |
— | ||
|
19
|
19
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
19
|
19
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
20
|
20
439-23121-00-E1
Cover, Upper 1
CHAPPY RD |
439-23121-00-E1 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
CHAPPY RD |
999-99999-99-00 |
— | ||
|
21
|
21
439-23131-00-E1
Cover, Upper 2
CHAPPY RD |
439-23131-00-E1 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
CHAPPY RD |
999-99999-99-00 |
— | ||
|
22
|
22
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
23
|
23
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
