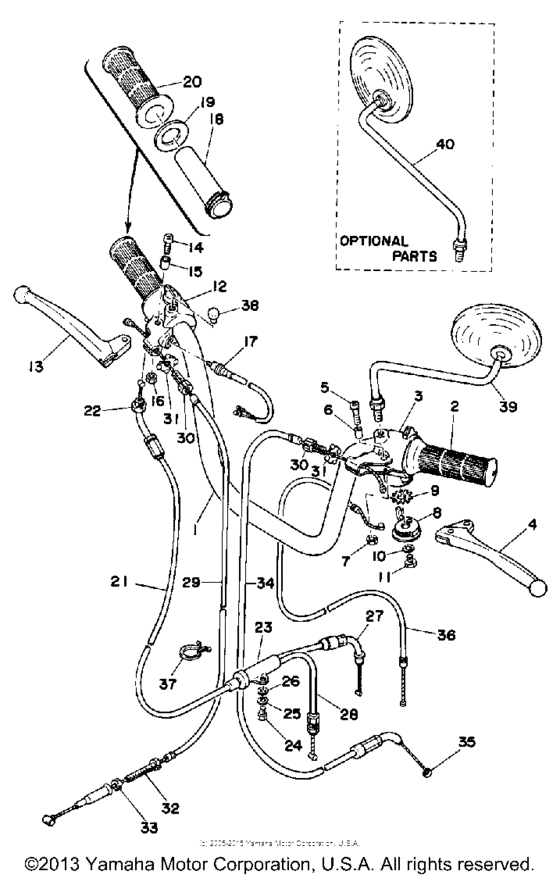

Handlebar - cable Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
542-26111-01-00
Handlebar
|
542-26111-01-00 |
— | ||
|
2
|
2
353-26241-00-00 Grip LhLH |
353-26241-00-00 |
from US $11.76 |
||
|
3
|
3
542-82710-00-00
Lever Holder Assembly 1
|
542-82710-00-00 |
— | ||
|
4
|
4
137-83912-02-38 Lever L |
137-83912-02-38 |
from US $28.71 |
||
|
5
|
5
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
5
|
5
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
6
|
6
395-83913-00-00
Collar, Lever 1
|
395-83913-00-00 |
— | ||
|
7
|
7
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
7
|
7
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
8
|
8
439-83941-02-00 Lever, Starter |
439-83941-02-00 |
from US $14.38 |
||
| replacement | |||||
|
8
|
8
3LA-83941-00-00 Lever, Starter |
3LA-83941-00-00 |
from US $10.12 |
||
|
9
|
9
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
11
|
11
97323-06008-00 Bolt |
97323-06008-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
12
|
12
542-W8292-01-00
Lever Holder Assembly R
|
542-W8292-01-00 |
— | ||
|
13
|
13
2N3-83922-00-00 Lever R |
2N3-83922-00-00 |
from US $23.09 |
||
|
14
|
14
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
14
|
14
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
15
|
15
395-83913-00-00
Collar, Lever 1
|
395-83913-00-00 |
— | ||
|
16
|
16
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
17
|
17
395-83980-00-00 Front Stop Switch AsAS |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
17
|
17
395-83980-09-00 Front Stop Switch AssyAS |
395-83980-09-00 |
from US $28.79 |
||
|
18
|
18
1V1-26243-00-00 Tube, Thrtl Guide |
1V1-26243-00-00 |
from US $17.10 |
||
|
19
|
19
150-26249-00-00
Ring, Leaf
|
150-26249-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
353-26242-00-00 Grip RhGrip,right RH |
353-26242-00-00 |
from US $11.76 |
||
|
21
|
21
439-26311-00-00 Cable, Throttle 1 |
439-26311-00-00 |
from US $39.93 |
||
|
22
|
22
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
22
|
22
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
23
|
23
137-26261-01-00 Connector, Cable |
137-26261-01-00 |
from US $21.54 |
||
|
24
|
24
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
26
|
26
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
27
|
27
439-26321-00-00 Cable,pump |
439-26321-00-00 |
from US $18.76 |
||
| replacement | |||||
|
27
|
27
439-26321-01-00 Cable, Pump |
439-26321-01-00 |
from US $25.72 |
||
|
28
|
28
439-26312-00-00
Cable, Throttle 2
|
439-26312-00-00 |
— | ||
|
29
|
29
439-26341-00-00 Cable, Brake |
439-26341-00-00 |
US $37.60 |
||
|
30
|
30
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
30
|
30
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
30
|
30
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
31
|
31
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
31
|
31
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
31
|
31
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
32
|
32
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
33
|
33
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
34
|
34
441-26335-00-00
Cable, clutch
|
441-26335-00-00 |
— | ||
|
35
|
35
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
36
|
36
439-26331-00-00 Cable, Starter 1 |
439-26331-00-00 |
from US $17.85 |
||
|
37
|
37
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
37
|
37
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
38
|
38
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
38
|
38
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
39
|
39
266-26290-10-00
3Mirror Assembly Lh
LH |
266-26290-10-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
40
|
40
395-26290-00-00
Mirror Assembly Rh
RH OPT.PARTS |
395-26290-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
RH OPT.PARTS |
999-99999-99-00 |
— | ||
