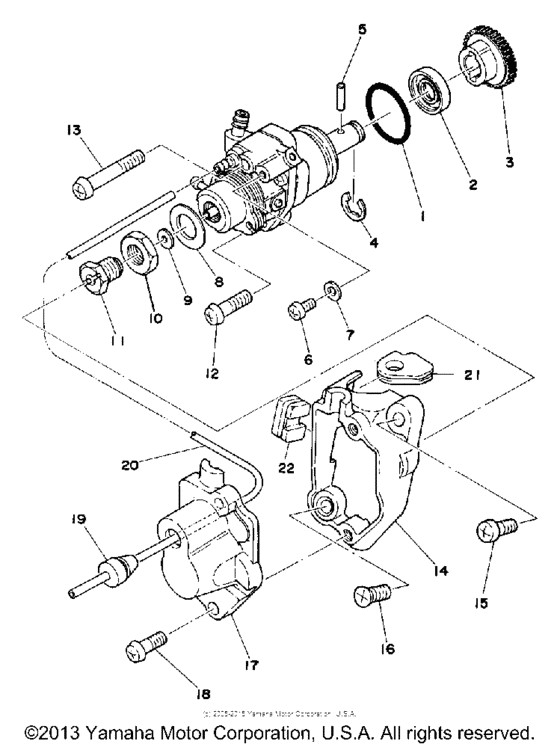

Oil pump Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93210-26240-00 O-Ring |
93210-26240-00 |
from US $1.94 |
||
|
1
|
1
442-13101-00-00
Oil Pump Assembly
|
442-13101-00-00 |
— | ||
|
2
|
2
931-04061-08-00 Oil Seal (1Ry)1RY |
931-04061-08-00 |
from US $2.83 |
||
|
3
|
3
296-13124-00-00 Gear, Worm Wheel |
296-13124-00-00 |
from US $13.39 |
||
|
4
|
4
99080-07600-00 Clip |
99080-07600-00 |
from US $1.77 |
||
|
5
|
5
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $2.08 |
||
|
6
|
6
989-01040-06-00
Screw,bind
|
989-01040-06-00 |
— | ||
| replacement | |||||
|
6
|
6
98980-04006-00 Screw, Bind |
98980-04006-00 |
from US $1.42 |
||
|
7
|
7
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
8
|
8
296-13147-00-00 Shim |
296-13147-00-00 |
from US $3.26 |
||
|
9
|
9
384-13138-00-00 Plate, Adjusting |
384-13138-00-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
384-13138-00-01
Plate, Adjusting
|
384-13138-00-01 |
— | ||
|
10
|
10
90170-10105-00 Nut |
90170-10105-00 |
from US $1.70 |
||
|
11
|
11
384-13118-00-00
Bolt, Adjusting
|
384-13118-00-00 |
— | ||
|
12
|
12
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
13
|
13
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
13
|
13
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
13
|
13
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
14
|
14
439-15416-01-00
Cover, Oil Pump
|
439-15416-01-00 |
— | ||
|
15
|
15
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
15
|
15
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
16
|
16
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
17
|
17
439-15426-02-00
Cover, Oil Pump R
|
439-15426-02-00 |
— | ||
|
18
|
18
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
18
|
18
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
19
|
19
90480-11057-00 Grommet |
90480-11057-00 |
from US $3.74 |
||
|
20
|
20
90445-05206-00 Hose |
90445-05206-00 |
US $3.54 |
||
| replacement | |||||
|
20
|
20
34M-13161-00-00 Pipe, Delivery 1 |
34M-13161-00-00 |
from US $2.36 |
||
|
21
|
21
384-13174-00-00 Holder, Oil Pipe |
384-13174-00-00 |
from US $2.69 |
||
|
22
|
22
90480-16179-00
Grommet
|
90480-16179-00 |
— | ||
