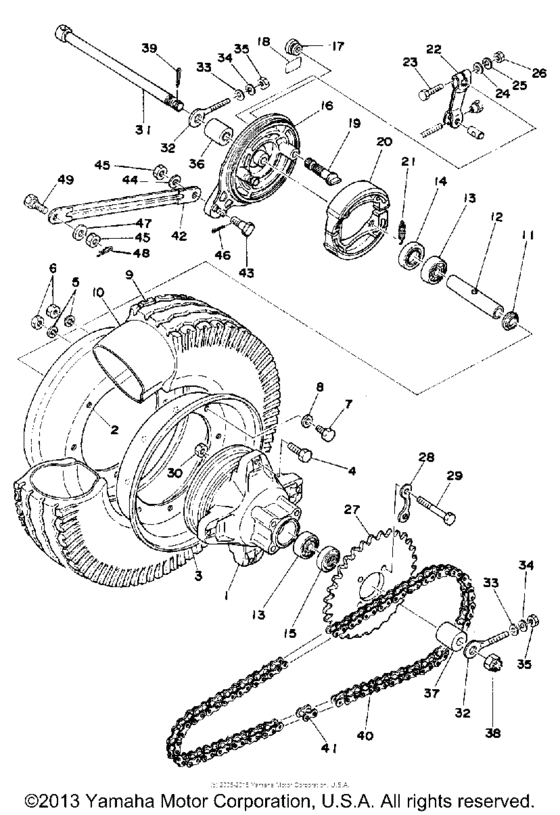

Rear wheel Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-25311-00-00
Hub, Rear
|
439-25311-00-00 |
— | ||
|
2
|
2
395-25337-00-35
Panel, Wheel 1
SLVR |
395-25337-00-35 |
— | ||
|
3
|
3
395-25347-00-35
Panel, Wheel 2
SLVR |
395-25347-00-35 |
— | ||
|
4
|
4
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
7
|
7
973-13080-15-00
New Genuine Part
IN PRICE BOOK ISO |
973-13080-15-00 |
— | ||
|
8
|
8
92901-08800-00 Washer, Wave |
92901-08800-00 |
from US $1.35 |
||
| replacement | |||||
|
8
|
8
92907-08800-00 Washer |
92907-08800-00 |
from US $1.40 |
||
|
9
|
9
94140-081M1-00 400-8 55J Irc Trials55J IRC TRIALS |
94140-081M1-00 |
US $158.04 |
||
| replacement | |||||
|
9
|
9
94140-08747-00 Tire (5F5)55J IRC TRIALS |
94140-08747-00 |
US $181.13 |
||
|
10
|
10
94240-08136-00 Tube |
94240-08136-00 |
US $40.93 |
||
|
11
|
11
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
12
|
12
90560-12110-00 Spacer (439-25317-00)439-25317-00 |
90560-12110-00 |
US $15.32 |
||
|
13
|
13
93306-20111-00 Bearing |
93306-20111-00 |
from US $20.12 |
||
| replacement | |||||
|
13
|
13
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $12.12 |
||
|
14
|
14
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
15
|
15
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
16
|
16
339-25320-10-00 Brake Shoe Plt Assembly |
339-25320-10-00 |
US $94.64 |
||
|
17
|
17
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
18
|
18
437-25134-00-00
Label, Indicator
|
437-25134-00-00 |
— | ||
|
19
|
19
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
20
|
20
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
20
|
20
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
21
|
21
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
22
|
22
102-25355-01-00
Lever, Camshaft
|
102-25355-01-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
24
|
24
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
27
|
27
109-25426-20-00
New Genuine Part
IN PRICE BOOK 109- |
109-25426-20-00 |
— | ||
|
28
|
28
2A3-25412-00-00 Washer |
2A3-25412-00-00 |
from US $6.32 |
||
| replacement | |||||
|
28
|
28
2AL-25412-00-00 Washer |
2AL-25412-00-00 |
from US $6.66 |
||
|
29
|
29
90109-08319-00 Bolt |
90109-08319-00 |
from US $7.93 |
||
|
30
|
30
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
31
|
31
439-25381-01-00 Axle, Wheel |
439-25381-01-00 |
from US $49.48 |
||
|
32
|
32
102-25389-00-00 Puller, Chain |
102-25389-00-00 |
from US $10.58 |
||
| replacements | |||||
|
32
|
32
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
32
|
32
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $12.35 |
||
|
33
|
33
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
33
|
33
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
33
|
33
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
34
|
34
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
35
|
35
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
36
|
36
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
37
|
37
90387-120F9-00 Collar |
90387-120F9-00 |
from US $5.13 |
||
|
38
|
38
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
38
|
38
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
39
|
39
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
39
|
39
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
40
|
40
945-80520-88-00 Chain (Did 420 86L) |
945-80520-88-00 |
from US $19.13 |
||
| replacement | |||||
|
40
|
40
9Y5-80520-87-00 Chain, Drive |
9Y5-80520-87-00 |
from US $19.13 |
||
|
41
|
41
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
|
42
|
42
561-25371-00-00 Bar, Tension |
561-25371-00-00 |
US $35.26 |
||
|
43
|
43
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
43
|
43
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
44
|
44
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
45
|
45
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
45
|
45
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
46
|
46
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
46
|
46
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
48
|
48
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
49
|
49
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
