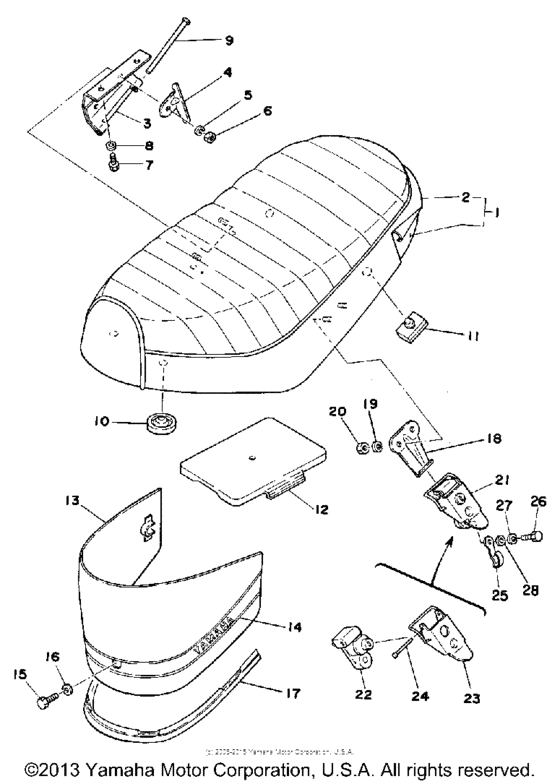

Seat Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L4-W2471-01-00
Single Seat Assembly
|
1L4-W2471-01-00 |
— | ||
|
2
|
2
1L4-24711-01-00
Cover, Single Seat
|
1L4-24711-01-00 |
— | ||
|
3
|
3
561-24726-00-00
Hinge, Seat
|
561-24726-00-00 |
— | ||
|
4
|
4
561-24768-02-00
Stopper
|
561-24768-02-00 |
— | ||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
7
|
7
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
8
|
8
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
917-01051-05-00
Pin, Clevis (3M7)
3M7 |
917-01051-05-00 |
— | ||
|
10
|
10
296-24723-00-00
Damper, Seat
|
296-24723-00-00 |
— | ||
|
11
|
11
214-24724-00-00 Damper, Seat |
214-24724-00-00 |
from US $7.65 |
||
|
12
|
12
395-28185-00-00 Lid |
395-28185-00-00 |
US $27.85 |
||
|
13
|
13
561-24796-01-E1
Cover
RD |
561-24796-01-E1 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
RD |
999-99999-99-00 |
— | ||
|
14
|
14
561-21783-00-00 Emblem 3 |
561-21783-00-00 |
from US $41.59 |
||
|
15
|
15
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
15
|
15
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
561-21278-00-00
Mold
|
561-21278-00-00 |
— | ||
|
18
|
18
561-24728-01-00
Bracket, Seat
|
561-24728-01-00 |
— | ||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
21
|
21
1K8-24705-00-00 Seat Lock Assembly (2A3-24705-02A3-24705-0 |
1K8-24705-00-00 |
from US $94.72 |
||
|
23
|
23
341-24776-00-33
Lever, Seat
|
341-24776-00-33 |
— | ||
|
24
|
24
902-43040-15-00
Pin
|
902-43040-15-00 |
— | ||
|
25
|
25
341-24818-00-00
Hook, Helmet
|
341-24818-00-00 |
— | ||
|
26
|
26
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
26
|
26
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
28
|
28
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
