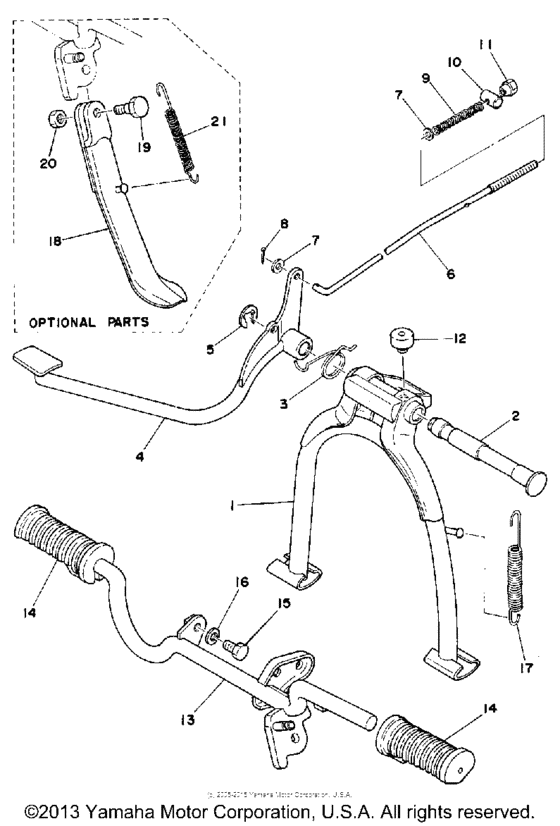

Stand - footrest Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-27111-03-00 Stand, Main (439-27111-03-33)439-27111-03-33 YAMAHA BK |
439-27111-03-00 |
US $141.61 |
||
|
2
|
2
336-27112-00-00 Shaft, Main Stand |
336-27112-00-00 |
from US $6.06 |
||
|
3
|
3
905-08260-37-00
Spring, Torsion
|
905-08260-37-00 |
— | ||
|
4
|
4
563-27211-02-93 New Genuine PartIN PRICE BOOK |
563-27211-02-93 |
US $63.82 |
||
|
5
|
5
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.84 |
||
|
6
|
6
288-27231-00-00 Rod, Brake |
288-27231-00-00 |
from US $18.56 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
9
|
9
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
10
|
10
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
11
|
11
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
12
|
12
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
|
13
|
13
442-27411-00-00
Footrest 1
|
442-27411-00-00 |
— | ||
|
14
|
14
441-27413-01-00 Cover, Footrest |
441-27413-01-00 |
from US $4.72 |
||
|
15
|
15
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
15
|
15
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
90506-26270-00 Spring, Tension (1L9) |
90506-26270-00 |
from US $8.22 |
||
|
18
|
18
395-27311-01-00
Stand, Side
AP |
395-27311-01-00 |
— | ||
|
19
|
19
90109-08032-00 BoltAP |
90109-08032-00 |
from US $5.10 |
||
|
20
|
20
953-03087-00-00
Nut
AP |
953-03087-00-00 |
— | ||
| replacement | |||||
|
20
|
20
95380-08700-00 NutAP |
95380-08700-00 |
from US $1.52 |
||
|
21
|
21
90506-29052-00 Spring, TensionAP |
90506-29052-00 |
from US $5.81 |
||
