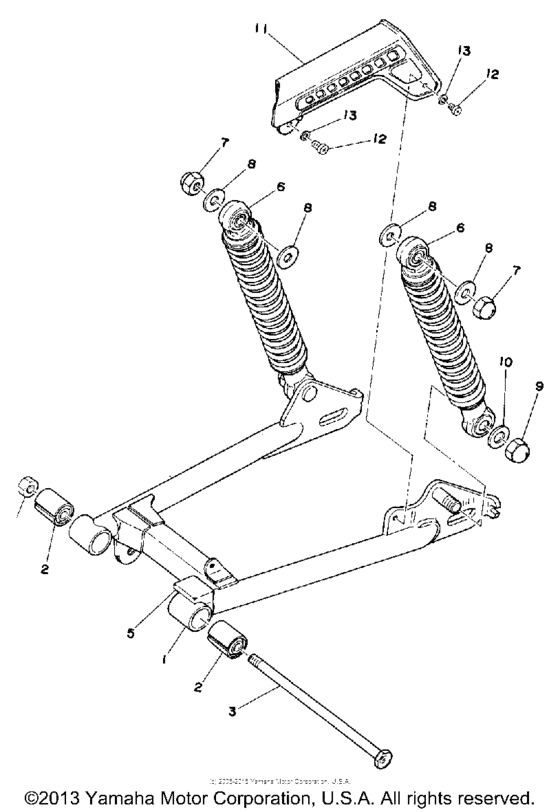

Swing arm Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
561-22110-01-33
Rear Arm
BK |
561-22110-01-33 |
— | ||
|
2
|
2
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
3
|
3
353-22141-02-00 Axle, Wheel |
353-22141-02-00 |
from US $5.36 |
||
| replacement | |||||
|
3
|
3
3XG-F5181-00-00 Axle, Wheel |
3XG-F5181-00-00 |
from US $5.36 |
||
|
4
|
4
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
5
|
5
395-22151-00-00
Seal, Guard
|
395-22151-00-00 |
— | ||
|
6
|
6
561-22210-22-00 Shk/abs Assembly, Rear |
561-22210-22-00 |
from US $209.59 |
||
|
7
|
7
95303-12800-00 Nut, Crown |
95303-12800-00 |
US $8.08 |
||
| replacement | |||||
|
7
|
7
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $4.04 |
||
|
8
|
8
90201-12190-00 Washer, Plate 1222224300 |
90201-12190-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.81 |
||
|
9
|
9
95303-12800-00 Nut, Crown |
95303-12800-00 |
US $8.08 |
||
| replacement | |||||
|
9
|
9
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $4.04 |
||
|
10
|
10
90201-12190-00 Washer, Plate 1222224300 |
90201-12190-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.81 |
||
|
11
|
11
439-22311-00-35
Case, Chain
|
439-22311-00-35 |
— | ||
|
12
|
12
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
