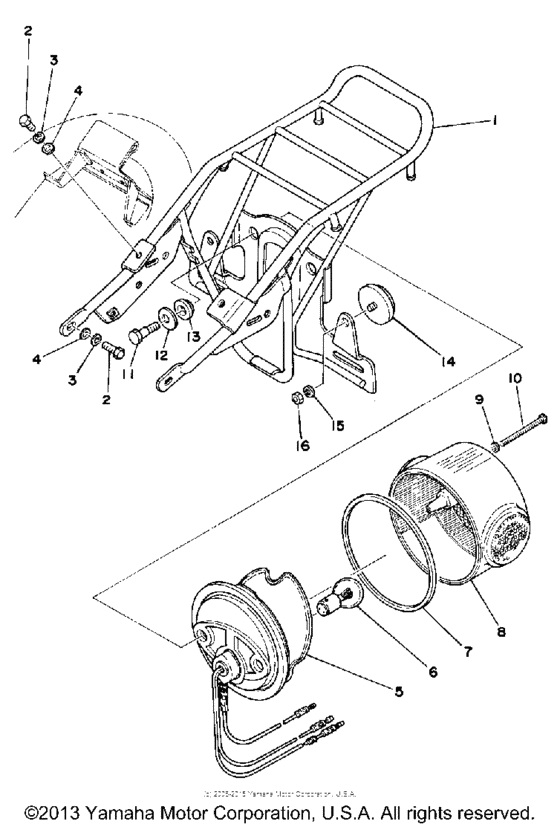

Taillight - carrier Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-84510-62-00
Taillight Unit Assembly
|
437-84510-62-00 |
— | ||
|
1
|
1
542-24810-01-00
Carrier Assembly
|
542-24810-01-00 |
— | ||
|
2
|
2
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
2
|
2
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
5
|
5
444-84711-61-00
Base, Taillight
|
444-84711-61-00 |
— | ||
|
6
|
6
1M1-84514-60-00
Bulb (6V-25/5.3W)
6VP21/5W17904 |
1M1-84514-60-00 |
— | ||
| replacement | |||||
|
6
|
6
1M1-84514-60-XX
BOLT
6VP21/5W17904 |
1M1-84514-60-XX |
— | ||
|
7
|
7
275-84523-60-00
Gasket, Lens
|
275-84523-60-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
341-84721-60-00
Lens, Taillight
|
341-84721-60-00 |
— | ||
|
9
|
9
341-84722-60-00
Washer
|
341-84722-60-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
98580-04055-00 Screw, Lens Fitting |
98580-04055-00 |
from US $4.25 |
||
|
11
|
11
479-84526-00-00
Screw
|
479-84526-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
13
|
13
275-84527-60-00
Damper
|
275-84527-60-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
449-85131-02-00 Reflector, Rear 12 |
449-85131-02-00 |
from US $12.46 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
