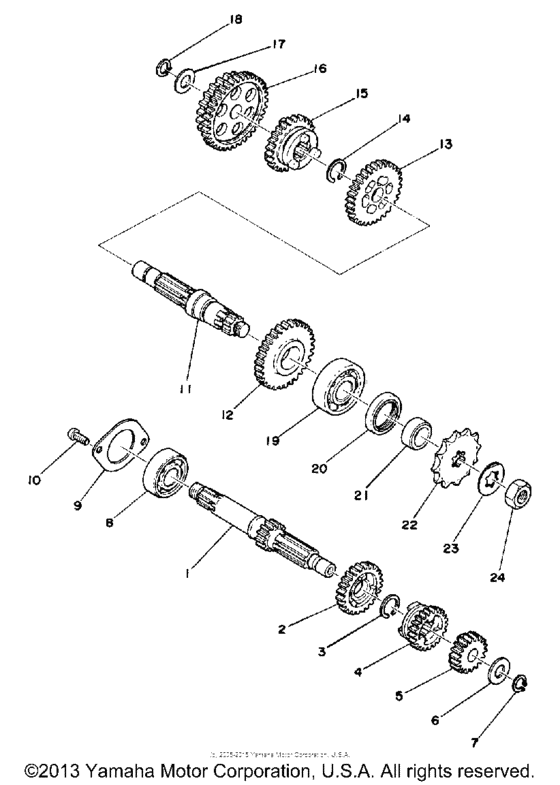

Transmission Diagram Yamaha LB80
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 800
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
441-17411-00-00
Axle, Main
|
441-17411-00-00 |
— | ||
|
1
|
1
441-17420-00-00
Drive Axle Assembly
|
441-17420-00-00 |
— | ||
|
2
|
2
353-17141-12-00 Gear, 4Th Pinion4TH PINION |
353-17141-12-00 |
US $93.62 |
||
|
3
|
3
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
4
|
4
353-17131-10-00 Gear, 3Rd Pinion3RD PINION |
353-17131-10-00 |
US $97.67 |
||
|
5
|
5
353-17121-11-00 Gear, 2Nd Pinion2ND PINION |
353-17121-11-00 |
US $79.45 |
||
|
6
|
6
615-45533-01-04
Shim
|
615-45533-01-04 |
— | ||
|
7
|
7
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
8
|
8
93306-20333-00 Bearing(39K) |
93306-20333-00 |
from US $15.30 |
||
| replacement | |||||
|
8
|
8
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
9
|
9
296-17471-00-00 Plate, Cover |
296-17471-00-00 |
from US $2.69 |
||
|
10
|
10
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
12
|
12
441-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
441-17221-00-00 |
— | ||
|
13
|
13
441-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
441-17231-00-00 |
— | ||
|
14
|
14
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
15
|
15
353-17241-00-00
Gear, 4Th Wheel (27T)
4TH WHEEL |
353-17241-00-00 |
— | ||
|
16
|
16
441-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
441-17211-00-00 |
— | ||
|
17
|
17
902-01134-15-00
Washer, Plate
|
902-01134-15-00 |
— | ||
|
18
|
18
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
19
|
19
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
20
|
20
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.51 |
||
|
21
|
21
903-87172-28-00
Collar
|
903-87172-28-00 |
— | ||
|
22
|
22
93811-13020-00 Sprocket, Drive (257-17461-31)Sprocket, drive (2571746131) 257-17461-31 UR STD |
93811-13020-00 |
US $15.53 |
||
| replacement | |||||
|
22
|
22
938-11130-19-00 Sprocket,drive 13T(12N1746131)257-17461-31 UR STD |
938-11130-19-00 |
US $15.08 |
||
|
22
|
22
93811-14033-00 Sprocket, DriveSprocket, drive UR STD |
93811-14033-00 |
from US $18.56 |
||
|
22
|
22
938-11150-60-00 Sprocket, Drive (257-17461-51)257-17461-51 UR STD |
938-11150-60-00 |
US $17.64 |
||
| replacement | |||||
|
22
|
22
938-11150-61-00 Sprocket,drive 15T(5G11746150)257-17461-51 UR STD |
938-11150-61-00 |
US $16.16 |
||
|
23
|
23
90215-13019-00 Washer,lock |
90215-13019-00 |
from US $4.39 |
||
| replacement | |||||
|
23
|
23
902-15130-26-00 Washer Lock 283174640000 |
902-15130-26-00 |
from US $3.24 |
||
|
24
|
24
90179-12181-00 Nut, Spec''l Shape |
90179-12181-00 |
from US $10.15 |
||
