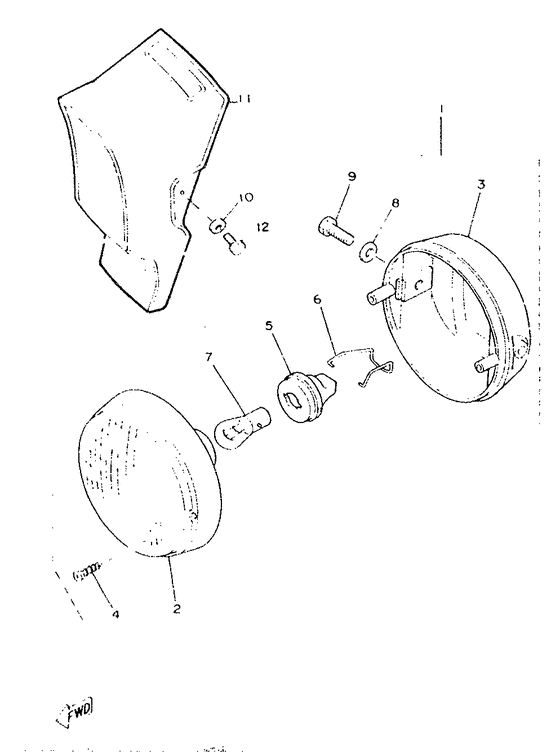

Headlight Diagram Yamaha ME50 YAMY
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 1TM
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- ME50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1TM-H4110-00-00
Headlight Unit Assy
|
1TM-H4110-00-00 |
— | ||
|
02
|
02
1TM-H4120-00-00
Lens Assy
|
1TM-H4120-00-00 |
— | ||
|
03
|
03
1TM-H4130-00-00
Body Assy, Headlight
|
1TM-H4130-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
1TM-H4125-00-00
Screw, Rim Fitting
|
1TM-H4125-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
1TM-H4112-00-00
Socket
|
1TM-H4112-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
1TM-H411L-00-00
New Genuine Part
|
1TM-H411L-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
1TM-H4114-00-00
Bulb, headlight
Lm |
1TM-H4114-00-00 |
— | ||
|
08
|
08
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
09
|
09
97301-08020-00 Bolt |
97301-08020-00 |
from US $2.09 |
||
| replacements | |||||
|
09
|
09
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
09
|
09
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
10
|
10
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
11
|
11
1TM-F8351-40-00
Body, Cowling
Ur para yb |
1TM-F8351-40-00 |
— | ||
|
11
|
11
1TM-F8351-00-00
Body, Cowling
Ur para cop |
1TM-F8351-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
Ur para cop |
999-99999-99-00 |
— | ||
|
11
|
11
1TM-F8351-10-00
Body, Cowling
Ur para sw |
1TM-F8351-10-00 |
— | ||
|
11
|
11
1TM-F8351-20-00
Body, Cowling
Ur para fr |
1TM-F8351-20-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
Ur para fr |
999-99999-99-00 |
— | ||
|
11
|
11
1TM-F8351-30-00
Body, Cowling
Ur para np |
1TM-F8351-30-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
Ur para np |
999-99999-99-00 |
— | ||
|
12
|
12
97001-06016-00 Bolt |
97001-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
