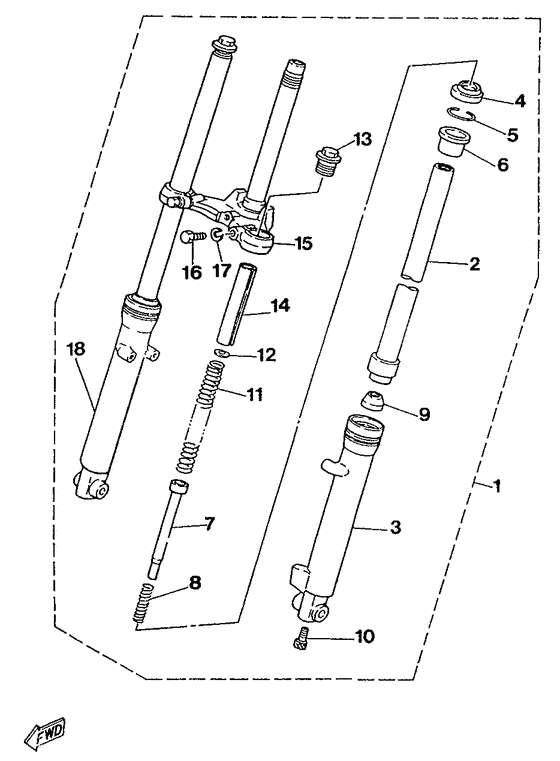

Front fork Diagram Yamaha ME50 YAMY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3UD1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- ME50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1TK-F3100-00-33
Front Fork Assy
Ur for yb |
1TK-F3100-00-33 |
— | ||
|
01
|
01
1TK-F3100-00-36
Front Fork Assy
Ur for w |
1TK-F3100-00-36 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur for w |
999-99999-99-00 |
— | ||
|
01
|
01
1TK-F3100-00-TV
Front Fork Assy
Ur for sedb |
1TK-F3100-00-TV |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur for sedb |
999-99999-99-00 |
— | ||
|
02
|
02
1TK-F3110-00-00
Inner Tube Comp.1
|
1TK-F3110-00-00 |
— | ||
|
03
|
03
1TK-F3126-00-33
Tube, Outer (Left)
Ur for yb |
1TK-F3126-00-33 |
— | ||
|
03
|
03
1TK-F3126-00-36
Tube, Outer (Left)
Ur for w |
1TK-F3126-00-36 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
Ur for w |
999-99999-99-00 |
— | ||
|
03
|
03
1TK-F3126-00-TV
Tube, Outer (Left)
Ur for sedb |
1TK-F3126-00-TV |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
Ur for sedb |
999-99999-99-00 |
— | ||
|
04
|
04
1TK-F3144-00-00
Seal, Dust
|
1TK-F3144-00-00 |
— | ||
|
05
|
05
93450-40070-00 Circlip |
93450-40070-00 |
US $2.69 |
||
| replacement | |||||
|
05
|
05
93450-42110-00 Circlip |
93450-42110-00 |
from US $1.49 |
||
|
06
|
06
1TK-F3125-00-00
Metal, Slide 1
|
1TK-F3125-00-00 |
— | ||
|
07
|
07
1TK-F3143-00-00
Seat, Spring Lower
|
1TK-F3143-00-00 |
— | ||
|
08
|
08
1TK-F3151-00-00
Spring, Rebound
|
1TK-F3151-00-00 |
— | ||
|
09
|
09
1TK-F332K-00-00
Bump, Stop
|
1TK-F332K-00-00 |
— | ||
|
10
|
10
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
11
|
11
1TK-F3141-00-00
Spring, Front Fork
|
1TK-F3141-00-00 |
— | ||
|
12
|
12
90201-087F0-00 Washer, Plate |
90201-087F0-00 |
from US $1.70 |
||
|
13
|
13
1TK-F3111-00-00
Bolt, Cap
|
1TK-F3111-00-00 |
— | ||
|
14
|
14
1TK-F3118-00-00
Spacer
|
1TK-F3118-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
1TK-F3340-00-00
Under Bracket Comp
|
1TK-F3340-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1TK-F3340-00-35
Under Bracket Comp
|
1TK-F3340-00-35 |
— | ||
|
16
|
16
97021-08035-00 BoltLm |
97021-08035-00 |
from US $2.13 |
||
| replacement | |||||
|
16
|
16
97017-08035-00 BoltLm |
97017-08035-00 |
from US $2.04 |
||
|
17
|
17
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
1TK-F3136-00-33
Tube, Outer (Right)
Ur for yb |
1TK-F3136-00-33 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
Ur for yb |
999-99999-99-00 |
— | ||
|
18
|
18
1TK-F3136-00-36
Tube, Outer (Right)
Ur for w |
1TK-F3136-00-36 |
— | ||
