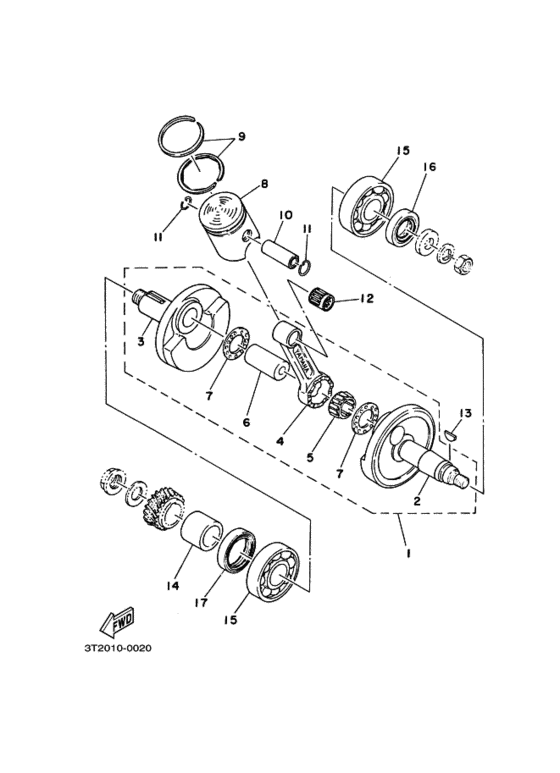

Crankshaft & Piston Diagram Yamaha MR50
- Year
- 1980
- Colour
- Competition Yellow (CPY; 0026)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2U2-11400-00-00
Crankshaft Assembly
|
2U2-11400-00-00 |
— | ||
|
2
|
2
2U2-11412-00-00
Crank 1
．クランク １; |
2U2-11412-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
．クランク １; |
999-99999-99-00 |
— | ||
|
3
|
3
2U2-11422-00-00
Crank 2
．クランク ２; |
2U2-11422-00-00 |
— | ||
|
4
|
4
538-11651-01-00 Rod, Connecting．ロツド，コネクテイング; |
538-11651-01-00 |
from US $101.16 |
||
| replacement | |||||
|
4
|
4
3R1-11651-01-00 Rod, Connecting (3R1-11651-00．ロツド，コネクテイング; |
3R1-11651-01-00 |
from US $123.10 |
||
|
5
|
5
93310-418E3-00 Bearing．ベアリング; |
93310-418E3-00 |
US $19.69 |
||
| replacement | |||||
|
5
|
5
93310-418C4-00 Bearing Cylinder #10．ベアリング; |
93310-418C4-00 |
from US $19.69 |
||
|
6
|
6
257-11681-00-00
Pin, Crank 1
．ピン，クランク １; |
257-11681-00-00 |
— | ||
| replacement | |||||
|
6
|
6
257-11681-10-00 Pin, Crank 1．ピン，クランク １; |
257-11681-10-00 |
from US $29.75 |
||
|
7
|
7
90209-18112-00 Washer．ワツシヤ; |
90209-18112-00 |
from US $3.72 |
||
|
8
|
8
3T2-11631-00-97
Piston (Std)
スタンダード; ＵＲ |
3T2-11631-00-97 |
— | ||
| replacement | |||||
|
8
|
8
3T2-11631-01-97
Piston-std (3T2-11631-00-97)
スタンダード; ＵＲ |
3T2-11631-01-97 |
— | ||
|
8
|
8
3T2-11631-00-98 Piston (Std)スタンダード; ＵＲ |
3T2-11631-00-98 |
US $137.32 |
||
|
9
|
9
2W1-11610-00-00 Piston Ringset Stdピストンリングセツト ; スタンダード |
2W1-11610-00-00 |
from US $69.50 |
||
|
10
|
10
517-11633-00-00 Pin, Piston |
517-11633-00-00 |
from US $12.47 |
||
| replacement | |||||
|
10
|
10
102-11633-02-00 Pin, Piston |
102-11633-02-00 |
from US $8.84 |
||
|
11
|
11
93450-13022-00 Circlipサークリツプ; |
93450-13022-00 |
from US $1.70 |
||
|
12
|
12
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
13
|
13
90280-03017-00 Key, Woodruffキー，ウツドラフ; |
90280-03017-00 |
from US $1.81 |
||
|
14
|
14
90387-20170-00 Collarカラー; |
90387-20170-00 |
from US $8.66 |
||
| replacement | |||||
|
14
|
14
90387-205E9-00 Collarカラー; |
90387-205E9-00 |
from US $12.33 |
||
|
15
|
15
93306-20418-00 Bearingベアリング ; Ｂ６２０４ＣＳ |
93306-20418-00 |
from US $21.96 |
||
| replacements | |||||
|
15
|
15
933-06204-68-00 Bearing(4Ed)ベアリング ; Ｂ６２０４ＣＳ |
933-06204-68-00 |
from US $29.27 |
||
|
15
|
15
93306-20458-00 Bearingベアリング ; Ｂ６２０４ＣＳ |
93306-20458-00 |
from US $22.62 |
||
|
16
|
16
93102-20009-00 Oil Sealオイルシール; |
93102-20009-00 |
from US $6.52 |
||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)オイルシール; |
93103-28011-00 |
from US $7.49 |
||
