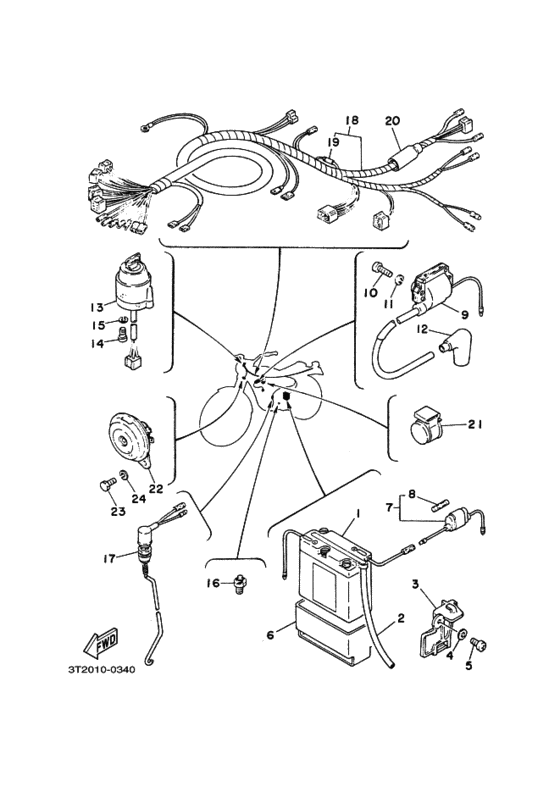

Electrical 1 (ｲｸﾞﾆﾂｼﾖﾝ) Diagram Yamaha MR50
- Year
- 1980
- Colour
- Competition Yellow (CPY; 0026)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
558-82110-K0-00
Battery Assy (Gs 6N4B-2A-3(Y))
バツテリアセンブリ; |
558-82110-K0-00 |
— | ||
|
2
|
2
90445-08171-00
Pipe, Breather
ホース; |
90445-08171-00 |
— | ||
| replacements | |||||
|
2
|
2
999-99999-99-00
Not Available
ホース; |
999-99999-99-00 |
— | ||
|
2
|
2
2RH-21826-00-00
Pipe, Breather
ホース; |
2RH-21826-00-00 |
— | ||
|
3
|
3
3T2-82129-01-00
Cover, Battery
カバー，バツテリ; |
3T2-82129-01-00 |
— | ||
|
4
|
4
90201-06053-00 Washer, Plateワツシヤ，プレート; |
90201-06053-00 |
from US $0.97 |
||
| replacement | |||||
|
4
|
4
90201-062A8-00 Washer, Plateワツシヤ，プレート; |
90201-062A8-00 |
from US $1.84 |
||
|
5
|
5
92506-06016-00 Screw |
92506-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
6
|
6
3T2-82122-00-00
Seat, Battery
シート，バツテリ; |
3T2-82122-00-00 |
— | ||
|
7
|
7
353-82150-00-00
Fuse Holder Assy
フユーズホルダアセンブリ; |
353-82150-00-00 |
— | ||
| replacements | |||||
|
7
|
7
55K-82150-01-00 Fuse H0Lder Assyフユーズホルダアセンブリ; |
55K-82150-01-00 |
from US $11.33 |
||
|
7
|
7
55K-82150-02-00 FUSE HOLDER ASSYフユーズホルダアセンブリ; |
55K-82150-02-00 |
from US $11.55 |
||
|
8
|
8
116-82151-00-00
Fuse (12V-10A)
．フユーズ ; ６Ｖ−１０Ａ |
116-82151-00-00 |
— | ||
| replacement | |||||
|
8
|
8
1A0-82151-00-00 Fuse (12V-10A)．フユーズ ; ６Ｖ−１０Ａ |
1A0-82151-00-00 |
from US $4.96 |
||
|
9
|
9
3T2-82310-M0-00
Ignition Coil Assembly
|
3T2-82310-M0-00 |
— | ||
|
10
|
10
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
11
|
11
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
437-82370-21-00 Plug Cap Assy |
437-82370-21-00 |
from US $16.43 |
||
| replacement | |||||
|
12
|
12
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
13
|
13
2L5-82508-20-00 Main Switch Assy |
2L5-82508-20-00 |
from US $68.22 |
||
| replacements | |||||
|
13
|
13
53C-82510-00-00 MAIN SWITCH ASSY |
53C-82510-00-00 |
from US $63.95 |
||
|
13
|
13
53C-82510-01-00 Main Switch Assy |
53C-82510-01-00 |
US $70.74 |
||
|
14
|
14
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
14
|
14
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
14
|
14
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
15
|
15
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
341-82540-01-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
341-82540-01-00 |
— | ||
| replacements | |||||
|
16
|
16
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
|
16
|
16
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $26.22 |
||
|
17
|
17
3T2-82530-00-00
Stop Switch Assy
|
3T2-82530-00-00 |
— | ||
|
18
|
18
3T2-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
3T2-82590-00-00 |
— | ||
|
19
|
19
3K7-81980-00-00 Diode Assy．ダイオード; |
3K7-81980-00-00 |
from US $15.44 |
||
|
20
|
20
538-82599-10-00 Cover, Connecterカバー，コネクター; |
538-82599-10-00 |
from US $6.80 |
||
|
21
|
21
2M5-83350-10-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
2M5-83350-10-00 |
— | ||
| replacement | |||||
|
21
|
21
2M5-83350-11-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
2M5-83350-11-00 |
— | ||
|
22
|
22
1K9-83371-10-00 Hornホーン; |
1K9-83371-10-00 |
from US $59.42 |
||
| replacement | |||||
|
22
|
22
2A7-83371-10-00
Horn
ホーン; |
2A7-83371-10-00 |
— | ||
|
23
|
23
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
23
|
23
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
23
|
23
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
24
|
24
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
