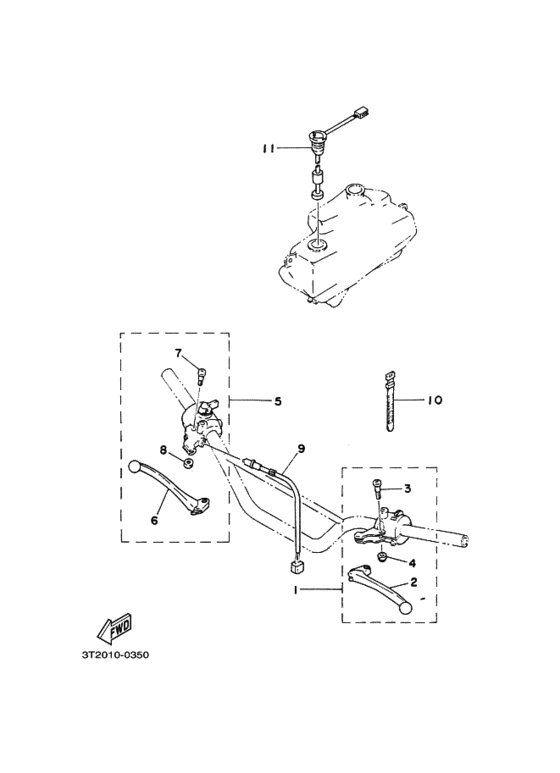

Electrical 2 (ｽｲﾂﾁ) Diagram Yamaha MR50
- Year
- 1980
- Colour
- Competition Yellow (CPY; 0026)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-82910-00-00
Lever Holder Assy (Left)
レバーホルダアセンブリ １; |
3T2-82910-00-00 |
— | ||
|
2
|
2
137-83912-02-38 Lever L．レバー １; クリヤ （バフアリ） |
137-83912-02-38 |
from US $28.71 |
||
|
3
|
3
90149-05120-00 Screw, Spec''l Shape．スクリユ; |
90149-05120-00 |
from US $2.69 |
||
|
4
|
4
95601-05100-00 Nut, U．ナツト，ｕ; |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
4
|
4
95617-05100-00 Nut, U．ナツト，ｕ; |
95617-05100-00 |
from US $2.22 |
||
|
5
|
5
3T2-82920-90-00
Lever Holder Assy (Right)
レバーホルダアセンブリ ２; |
3T2-82920-90-00 |
— | ||
|
6
|
6
137-83922-02-38 Lever 2．レバー ２; |
137-83922-02-38 |
from US $19.66 |
||
| replacement | |||||
|
6
|
6
2N3-83922-00-00 Lever R．レバー ２; |
2N3-83922-00-00 |
from US $23.09 |
||
|
7
|
7
90149-05120-00 Screw, Spec''l Shape．スクリユ; |
90149-05120-00 |
from US $2.69 |
||
|
8
|
8
95601-05100-00 Nut, U．ナツト，ｕ; |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
8
|
8
95617-05100-00 Nut, U．ナツト，ｕ; |
95617-05100-00 |
from US $2.22 |
||
|
9
|
9
361-83980-30-00 Front Stop Switch Assy |
361-83980-30-00 |
from US $25.58 |
||
| replacement | |||||
|
9
|
9
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
10
|
10
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
3J0-85720-00-00
Oil Level Gauge Assy
オイルレベルゲージアセンブリ; |
3J0-85720-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5GP-85720-00-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
5GP-85720-00-00 |
from US $58.86 |
||
