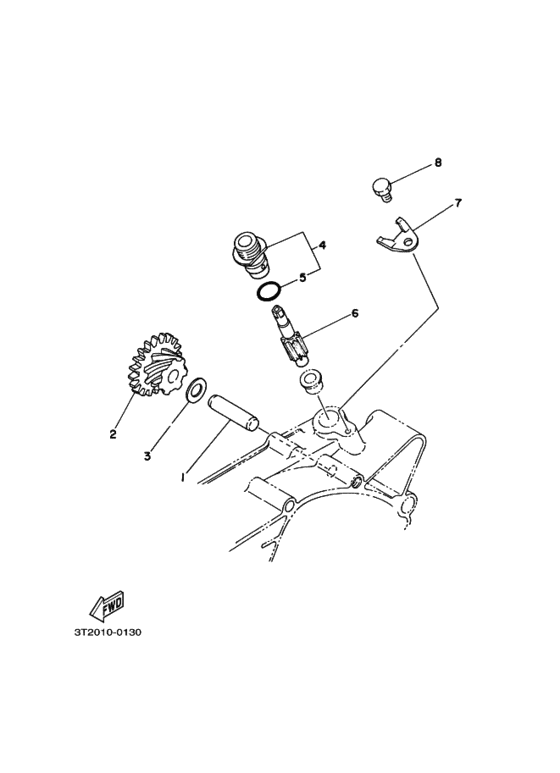

ﾀｺﾒｰﾀｷﾞﾔ Diagram Yamaha MR50
- Year
- 1980
- Colour
- Competition Yellow (CPY; 0026)
- Model code
- 3T20
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- MR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
237-17861-00-00
Axle, Drive Gear
|
237-17861-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
353-17831-00-00
Gear, Drive (7T/21T)
|
353-17831-00-00 |
— | ||
| replacement | |||||
|
2
|
2
353-17831-01-00
Gear, Drive (353-17831-00)
|
353-17831-01-00 |
— | ||
|
3
|
3
248-17837-00-00
Shim
|
248-17837-00-00 |
— | ||
|
4
|
4
353-17810-00-00
Housing Assembly, Tach (214-178
ハウジングアセンブリ; |
353-17810-00-00 |
— | ||
|
5
|
5
93210-13016-00 O-Ring．Ｏ−リング; |
93210-13016-00 |
from US $2.08 |
||
|
6
|
6
214-17841-01-00
Gear, Driven
|
214-17841-01-00 |
— | ||
|
7
|
7
214-17812-00-00
Stopper
|
214-17812-00-00 |
— | ||
| replacement | |||||
|
7
|
7
5U7-17812-00-00
Stopper
|
5U7-17812-00-00 |
— | ||
|
8
|
8
97301-06010-00 Bolt |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
