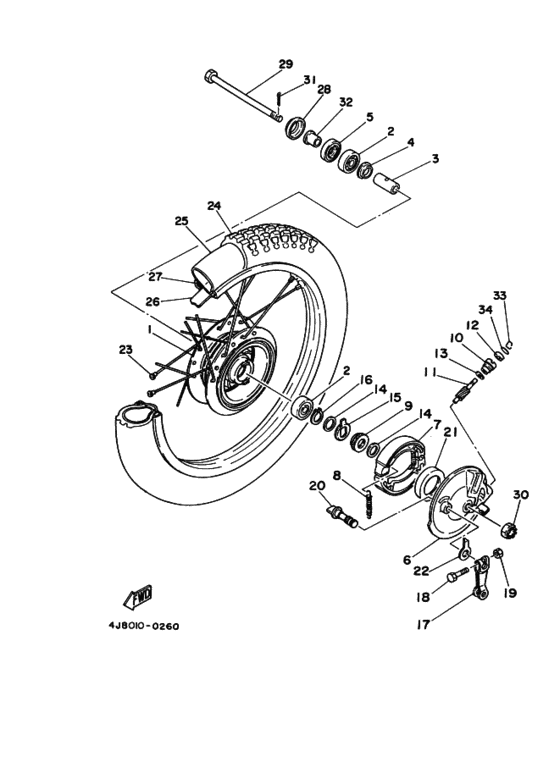

Front wheel Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-25111-00-98 Hub, Frontツヤケシブラツク |
248-25111-00-98 |
from US $144.70 |
||
|
2
|
2
93306-30103-00 Bearingベアリング ; Ｂ６３０１Ｚ |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
2
|
2
933-06301-02-00 Bearingベアリング ; Ｂ６３０１Ｚ |
933-06301-02-00 |
from US $12.75 |
||
|
3
|
3
90560-12138-00 Spacerスペーサ; |
90560-12138-00 |
from US $4.96 |
||
|
4
|
4
109-25315-00-00 Flange, Spacerフランジ，スペーサ; |
109-25315-00-00 |
from US $2.55 |
||
|
5
|
5
93102-18008-00 Oil Sealオイルシール; |
93102-18008-00 |
from US $7.23 |
||
|
6
|
6
4J8-25121-00-98 Plate, Brake Shoeプレート，ブレーキシユ; ツヤケシブラツク |
4J8-25121-00-98 |
US $121.14 |
||
|
7
|
7
326-25330-10-00
Brake Shoe Comp
ブレーキシユーコンプリート; |
326-25330-10-00 |
— | ||
| replacements | |||||
|
7
|
7
4BE-W253E-00-00 Brake Shoe Kitブレーキシユーコンプリート; |
4BE-W253E-00-00 |
from US $27.27 |
||
|
7
|
7
4KN-W253E-11-00 Brake Shoe Kitブレーキシユーコンプリート; |
4KN-W253E-11-00 |
from US $28.08 |
||
|
7
|
7
326-W2536-00-00
Brakeshoe Set-2Pcs (326-25330-1
ブレーキシユーコンプリート; |
326-W2536-00-00 |
— | ||
|
8
|
8
90506-16150-00 Spring, Tension (566)スプリング，テンシヨン; |
90506-16150-00 |
from US $3.97 |
||
|
9
|
9
2J7-25135-00-00 Inactive Part Number |
2J7-25135-00-00 |
US $30.02 |
||
|
10
|
10
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
11
|
11
2J7-25138-00-00 Gear, Meterギア，メータ; |
2J7-25138-00-00 |
US $24.68 |
||
|
12
|
12
93104-07003-00 Oil Seal, So-Typeオイルシール; |
93104-07003-00 |
from US $1.84 |
||
|
13
|
13
90201-07076-00 Washer, Plateワツシヤ，プレート; |
90201-07076-00 |
from US $1.70 |
||
|
14
|
14
90201-20269-00 Washer, Plateワツシヤ，プレート; |
90201-20269-00 |
from US $1.70 |
||
|
15
|
15
183-25149-00-00 Clutch, Meterクラツチ，メータ; |
183-25149-00-00 |
from US $2.98 |
||
|
16
|
16
93410-20009-00 Circlipサークリツプ; |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
99009-20400-00 Circlipサークリツプ; |
99009-20400-00 |
from US $1.56 |
||
|
17
|
17
2N3-25155-00-00 Lever, Camshaft 1レバー，カムシヤフト １; |
2N3-25155-00-00 |
from US $21.96 |
||
|
18
|
18
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
19
|
19
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
3Y6-25351-01-00
Camshaft
カムシヤフト; |
3Y6-25351-01-00 |
— | ||
|
21
|
21
93105-47007-00 Oil Sealオイルシール; |
93105-47007-00 |
from US $6.06 |
||
|
22
|
22
3Y6-2533A-01-00 Plate, Indicatorプレート，インデケータ; |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
22
|
22
5AD-F533A-00-00
Plate, Indicator
プレート，インデケータ; |
5AD-F533A-00-00 |
— | ||
|
23
|
23
276-25104-00-00 Spoke Set, Frontスポークセツト，フロント; |
276-25104-00-00 |
US $85.76 |
||
| replacement | |||||
|
23
|
23
276-25104-40-00
Spoke Set
スポークセツト，フロント; |
276-25104-40-00 |
— | ||
|
24
|
24
94125-19285-00
Tire (2.50-19)
タイヤ ; ２．５０−１９ |
94125-19285-00 |
— | ||
|
25
|
25
94225-19133-00 Tube (70/100-19 Tr4)チユーブ ; ２．５０−１９ |
94225-19133-00 |
US $30.29 |
||
| replacement | |||||
|
25
|
25
94227-19292-00 Tubeチユーブ ; ２．５０−１９ |
94227-19292-00 |
US $41.53 |
||
|
26
|
26
94320-19089-00 Band, Rim (1.40-19)バンド，リム ; ２．００−１９ |
94320-19089-00 |
from US $4.39 |
||
| replacement | |||||
|
26
|
26
943-27191-11-00 Band, Rim (2.00-19)バンド，リム ; ２．００−１９ |
943-27191-11-00 |
from US $4.39 |
||
|
27
|
27
94414-19056-00 Rimリム ; １．４０−１９ |
94414-19056-00 |
from US $89.11 |
||
| replacement | |||||
|
27
|
27
944-14190-03-00 Rim (1.40-19)リム ; １．４０−１９ |
944-14190-03-00 |
from US $75.30 |
||
|
28
|
28
481-25118-01-00 Cover, Hub Dustカバー，ハブダスト; |
481-25118-01-00 |
from US $6.23 |
||
|
29
|
29
901-02120-15-00 Bolt, With Holeボルト，ウイズホール; |
901-02120-15-00 |
from US $17.42 |
||
|
30
|
30
95301-12900-00 Nut, Castleナツト，スロツテド; |
95301-12900-00 |
US $3.37 |
||
| replacement | |||||
|
30
|
30
90171-12058-00 Nut, Castleナツト，スロツテド; |
90171-12058-00 |
US $3.37 |
||
|
31
|
31
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
32
|
32
90387-12616-00 Collarカラー; |
90387-12616-00 |
from US $8.38 |
||
|
33
|
33
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
34
|
34
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
34
|
34
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
