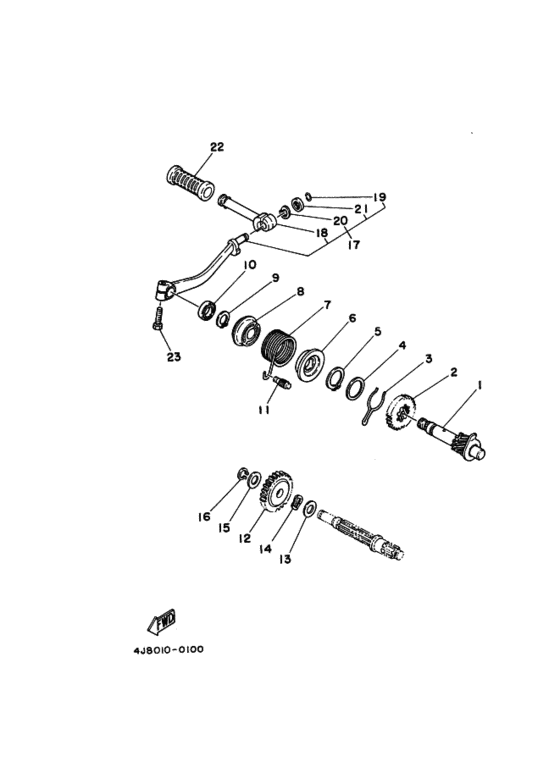

ｷﾂｸｽﾀｰﾀ Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-15660-02-00
Kick Axle Assy
|
353-15660-02-00 |
— | ||
| replacement | |||||
|
1
|
1
353-15660-01-00
Kick Axle Assembly
|
353-15660-01-00 |
— | ||
|
2
|
2
353-15641-00-00
Gear, Kick
ギア，キツク ; ２４Ｔ |
353-15641-00-00 |
— | ||
|
3
|
3
90468-26038-00
Clip
|
90468-26038-00 |
— | ||
|
4
|
4
117-15644-00-00 Washer, Plate (T=1.0) |
117-15644-00-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.81 |
||
|
5
|
5
93410-25017-00 Circlipサークリツプ; |
93410-25017-00 |
from US $2.70 |
||
|
6
|
6
132-15664-01-00 Guide, Spring |
132-15664-01-00 |
from US $11.61 |
||
|
7
|
7
90508-26136-00 Spring, Torsionスプリング，トーシヨン; |
90508-26136-00 |
from US $8.93 |
||
|
8
|
8
132-15676-01-00 Cover, Springカバー，スプリング; |
132-15676-01-00 |
from US $9.92 |
||
|
9
|
9
93410-15005-00 Circlipサークリツプ; |
93410-15005-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
99009-15400-00 Circlip(1Ar)サークリツプ; |
99009-15400-00 |
from US $1.18 |
||
|
10
|
10
93109-15001-00 Oil Sealオイルシール; |
93109-15001-00 |
from US $4.43 |
||
|
11
|
11
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $2.70 |
||
|
12
|
12
353-15651-00-00
Gear, Kick Idle
ギア，キツクアイドル ; ２５Ｔ |
353-15651-00-00 |
— | ||
|
13
|
13
90201-13202-00 Washer Plate 201156530000ワツシヤ，プレート; |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-13013-00 Washer, Plateワツシヤ，プレート; |
90201-13013-00 |
from US $1.70 |
||
|
14
|
14
90206-15021-00 Washer, Waveワツシヤ，ウエーブ; |
90206-15021-00 |
from US $3.12 |
||
|
15
|
15
102-18137-00-10 Washer 1 |
102-18137-00-10 |
US $2.69 |
||
| replacement | |||||
|
15
|
15
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
16
|
16
93410-12003-00 Circlipサークリツプ; |
93410-12003-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
990-09124-00-00 Circlipサークリツプ; |
990-09124-00-00 |
from US $1.66 |
||
|
17
|
17
3T2-15610-00-00
Kick Crank Assy
|
3T2-15610-00-00 |
— | ||
|
18
|
18
122-15612-02-00
Lever, Kick
．レバー，キツク; |
122-15612-02-00 |
— | ||
| replacements | |||||
|
18
|
18
214-15612-09-00
Lever, Kick
．レバー，キツク; |
214-15612-09-00 |
— | ||
|
18
|
18
999-99999-99-00
Not Available
．レバー，キツク; |
999-99999-99-00 |
— | ||
|
19
|
19
934-40100-28-00
Circlip, Outer
．サークリツプ; |
934-40100-28-00 |
— | ||
|
20
|
20
90504-18005-00 Spring, Compression．スプリング，コンプレツシヨン; |
90504-18005-00 |
from US $3.05 |
||
| replacement | |||||
|
20
|
20
90504-18031-00 Spring, Compression．スプリング，コンプレツシヨン; |
90504-18031-00 |
from US $3.05 |
||
|
21
|
21
90209-10108-00
Washer,spec'l Shape
．ワツシヤ; |
90209-10108-00 |
— | ||
| replacement | |||||
|
21
|
21
902-09102-10-00
Washer (5L1)
．ワツシヤ; |
902-09102-10-00 |
— | ||
|
22
|
22
156-15618-01-00 Cover, Kick Leverカバー，キツクレバー; |
156-15618-01-00 |
from US $4.58 |
||
|
23
|
23
97311-06025-00 Bolt |
97311-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
