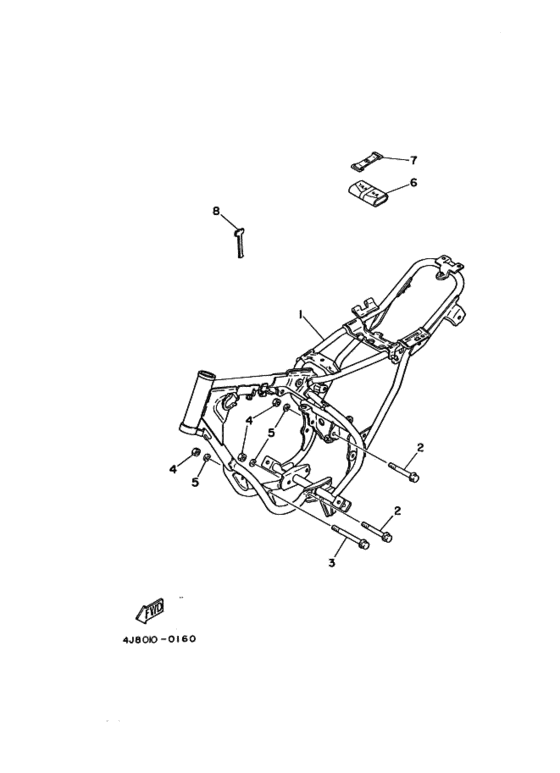

ﾌﾚｰﾑ. ﾂｰﾙ Diagram Yamaha MR50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- MR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G3-21110-00-33
Frame Comp
フレームコンプリート; ヤマハブラツク |
4G3-21110-00-33 |
— | ||
|
2
|
2
95821-08090-00 Bolt, Flange |
95821-08090-00 |
from US $2.25 |
||
| replacement | |||||
|
2
|
2
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
3
|
3
95821-08120-00 Bolt, Flange |
95821-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
3
|
3
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
4
|
4
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
4
|
4
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
4
|
4
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
5
|
5
929-01081-00-00
Washer, Spring
ワツシヤ，スプリソグ; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリソグ; |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
2U2-28100-11-00
Tool Kit
ツールキツト; |
2U2-28100-11-00 |
— | ||
|
7
|
7
288-21376-00-00 Band, Toolバンド，ツール; |
288-21376-00-00 |
US $13.03 |
||
| replacement | |||||
|
7
|
7
21V-21376-00-00 Band, Toolバンド，ツール; |
21V-21376-00-00 |
from US $9.72 |
||
|
8
|
8
3M7-15361-00-00
Gauge, Level
ゲージ，レベル; |
3M7-15361-00-00 |
— | ||
